Features and Benefits:

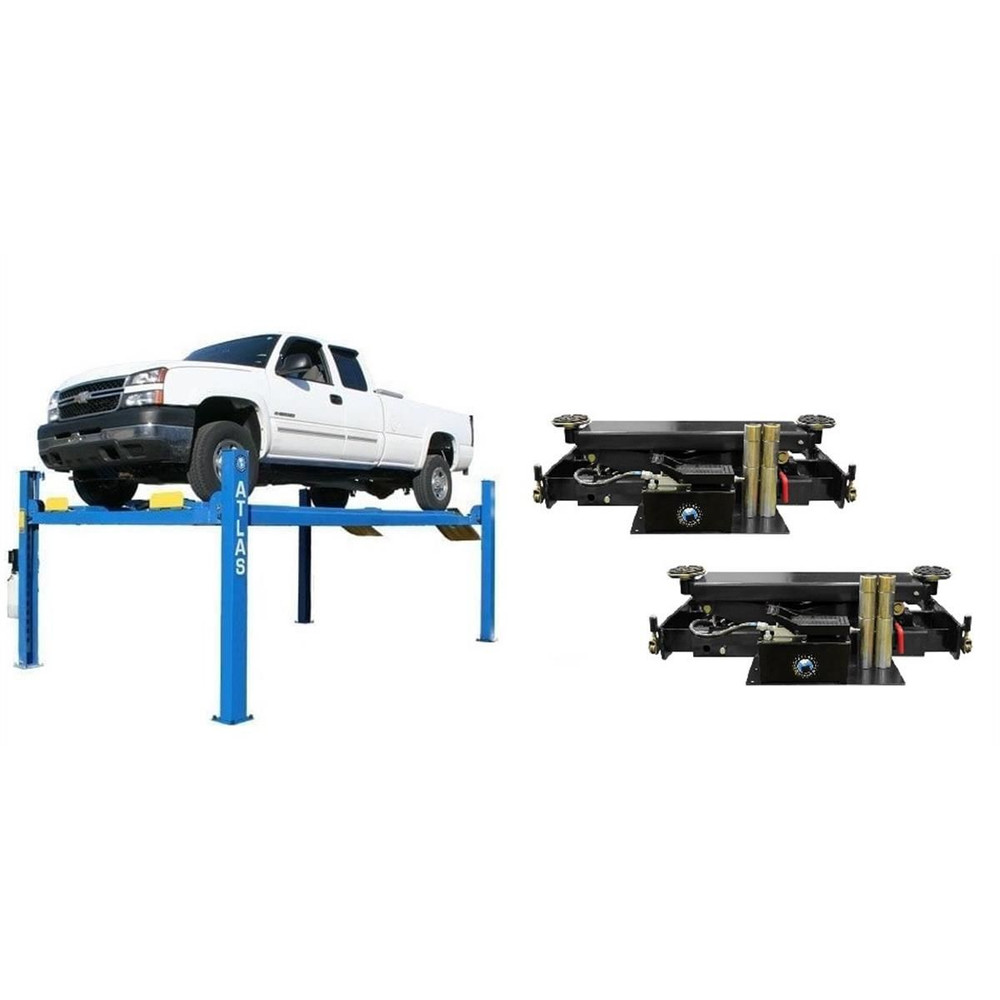

- Combo Package includes 414 14,000 lb. Capacity lift & two RJ8 rolling jacks
- Heavy Duty, Commercial Grade
- Lift is Extra Tall, Extra Wide & Extra Long

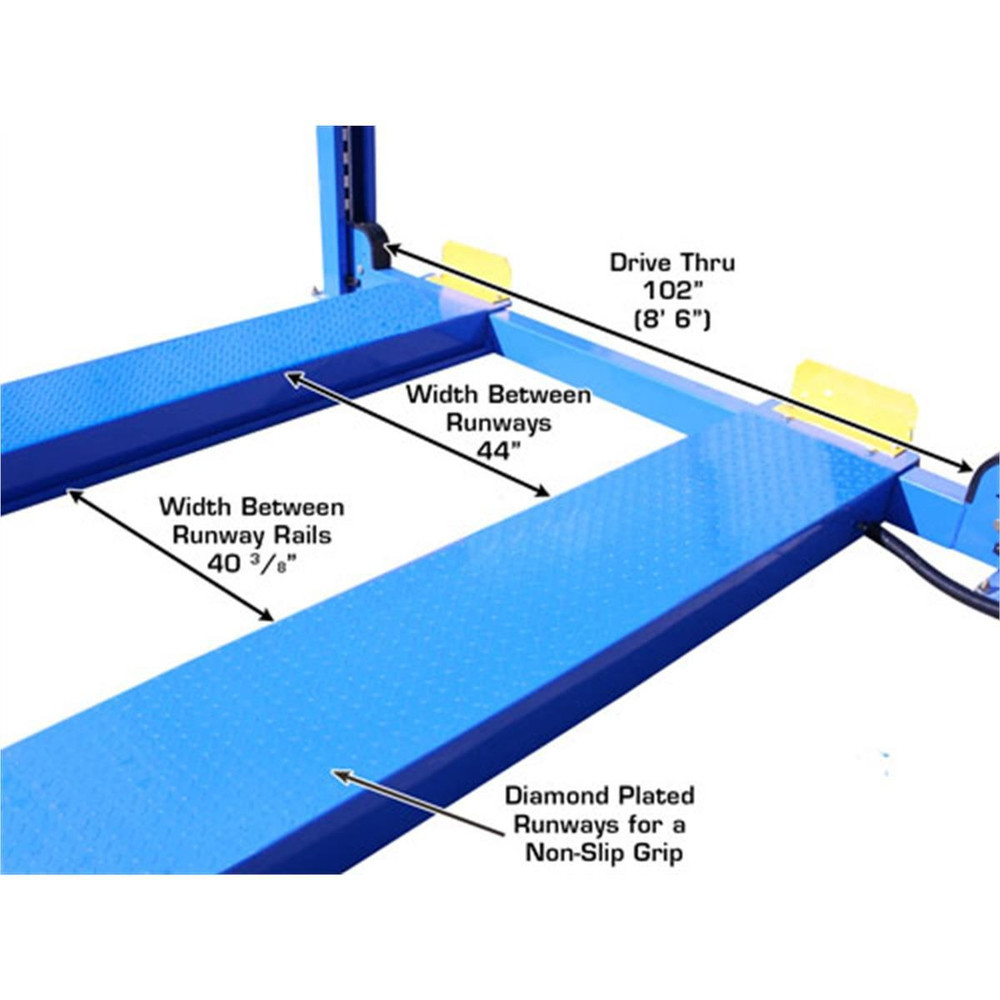

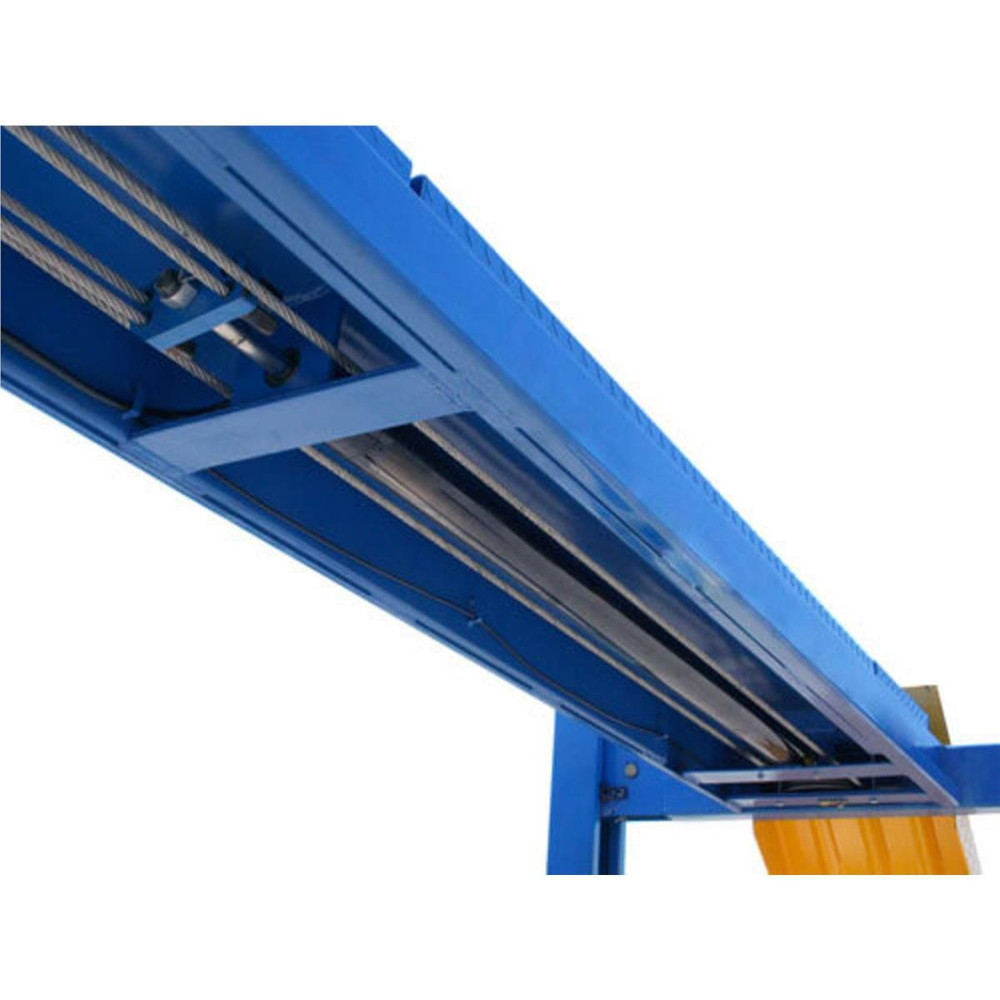

- Lift has Diamond Plated Runways

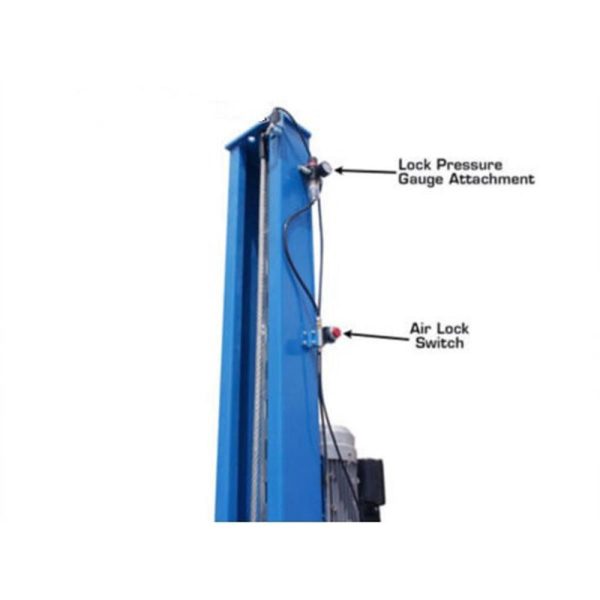

- Lift has Air Operated Single Point Lock Release (External Air Supply Required – NOT INCLUDED)
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- Jacks are Air Over Hydraulic operated
- Truck Adapter Set for each Jack Included
- This part number FREIGHT PREPAID
Atlas® ATTD-414 Specifications
- Capacity 14,000 lb.

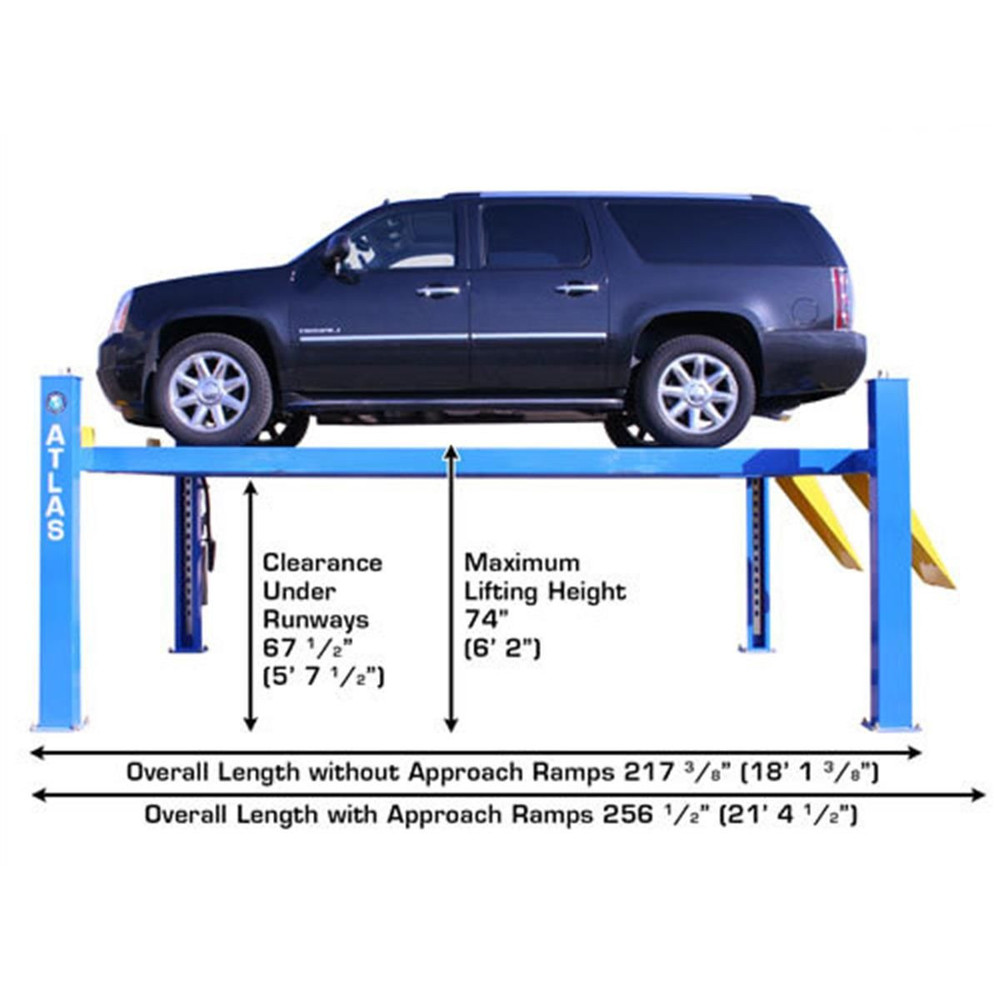

- Lifting Height 80″ (6′ 8″)

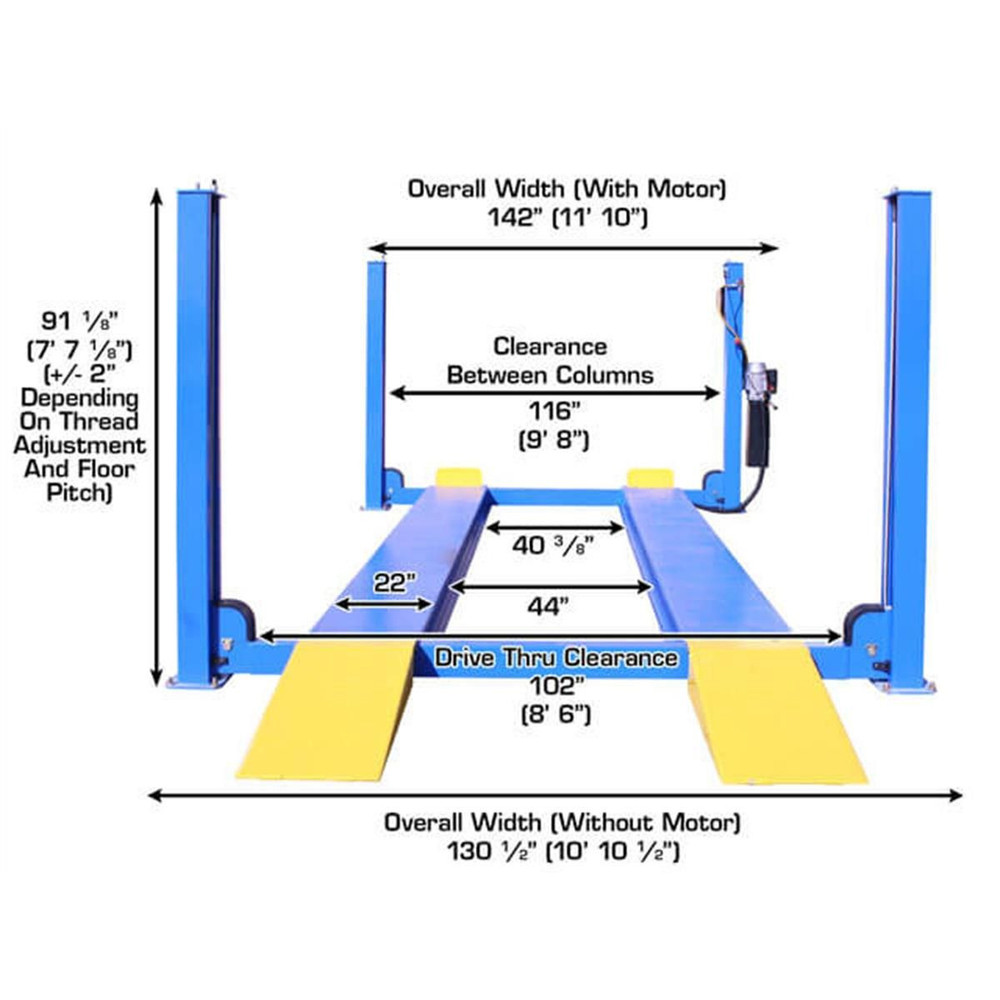

- Overall Width Of Columns (Without Motor) 130 7/8″ (10′ 10 7/8″)
- Overall Width Of Columns (With Motor) 138 7/8″ (11′ 6 7/8″)
- Overall Length With Approach Ramp 255″ (21′ 3″)
- Length Between Columns 197 1/4″ (16′ 5 1/4″)
- Runway Length 208 5/8″ (17′ 4 5/8″)
- Runway Width 20″
- Thickness Of Runway 8 3/4″
- Width Between Runways 46 7/8″ (w/ Rail 44 3/8″)
- Outside Runway To Outside Runway 86 7/8″ (7′ 2 7/8″)

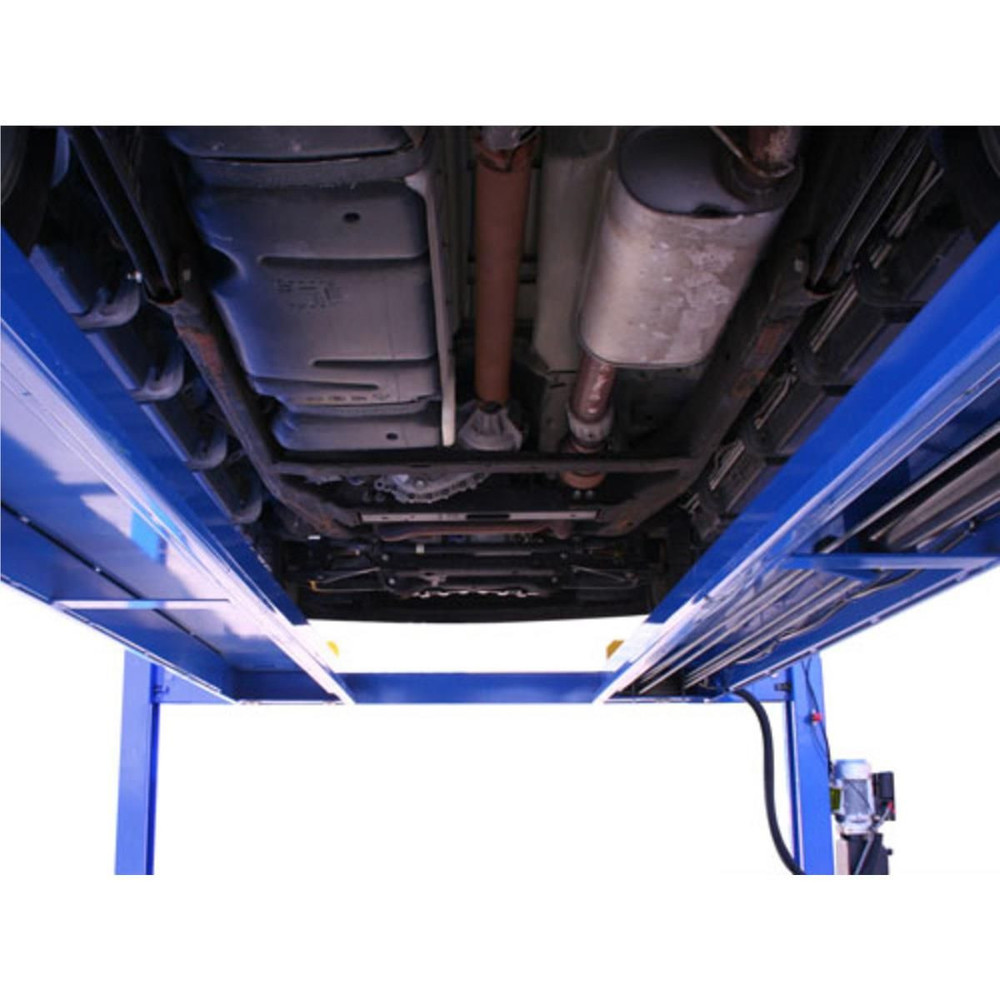

- Clearance Under Runways 71 1/4″ (5′ 11 1/4″)

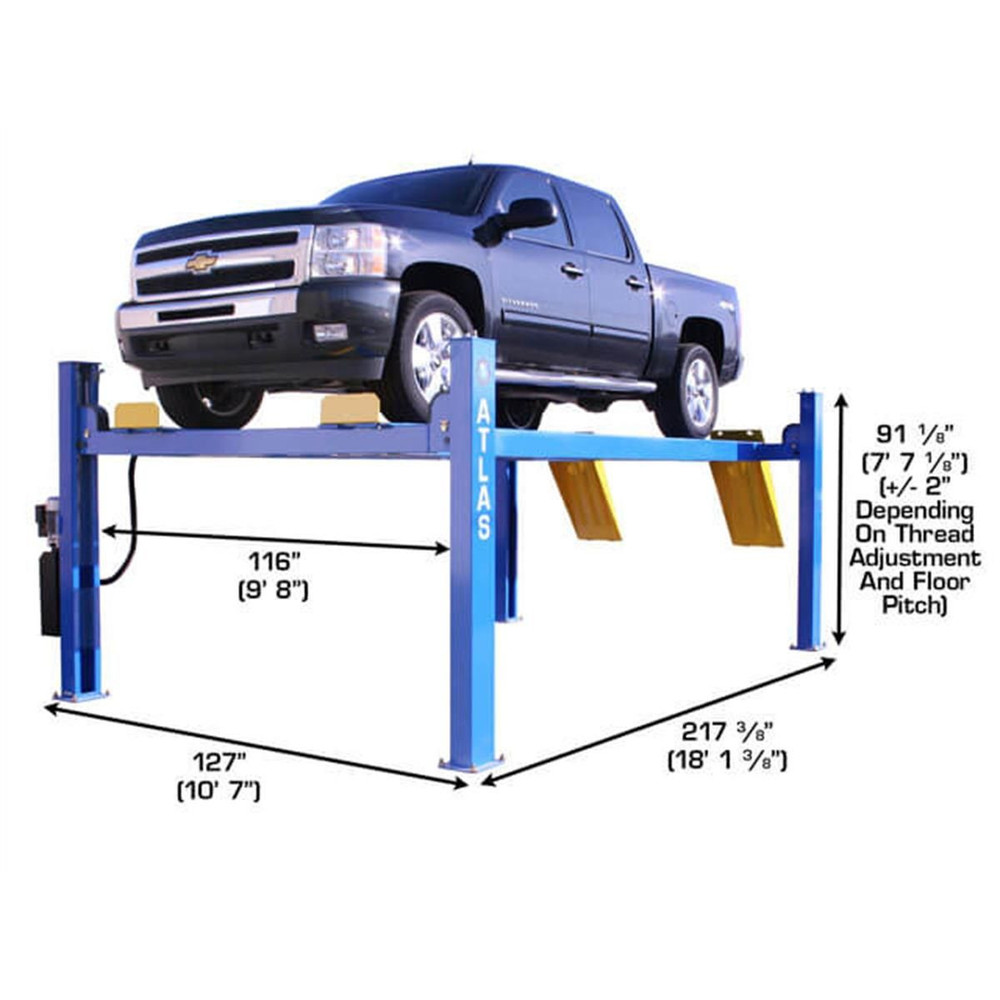

- Clearance Between Columns 116″ (9′ 8″)
- Height Of Columns 91 1/8″ (7′ 7 1/8″)
- Maximum Wheel Base 197″ (16′ 5″)
- Drive Thru 102 1/8″ (8′ 6 1/8″)
- Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

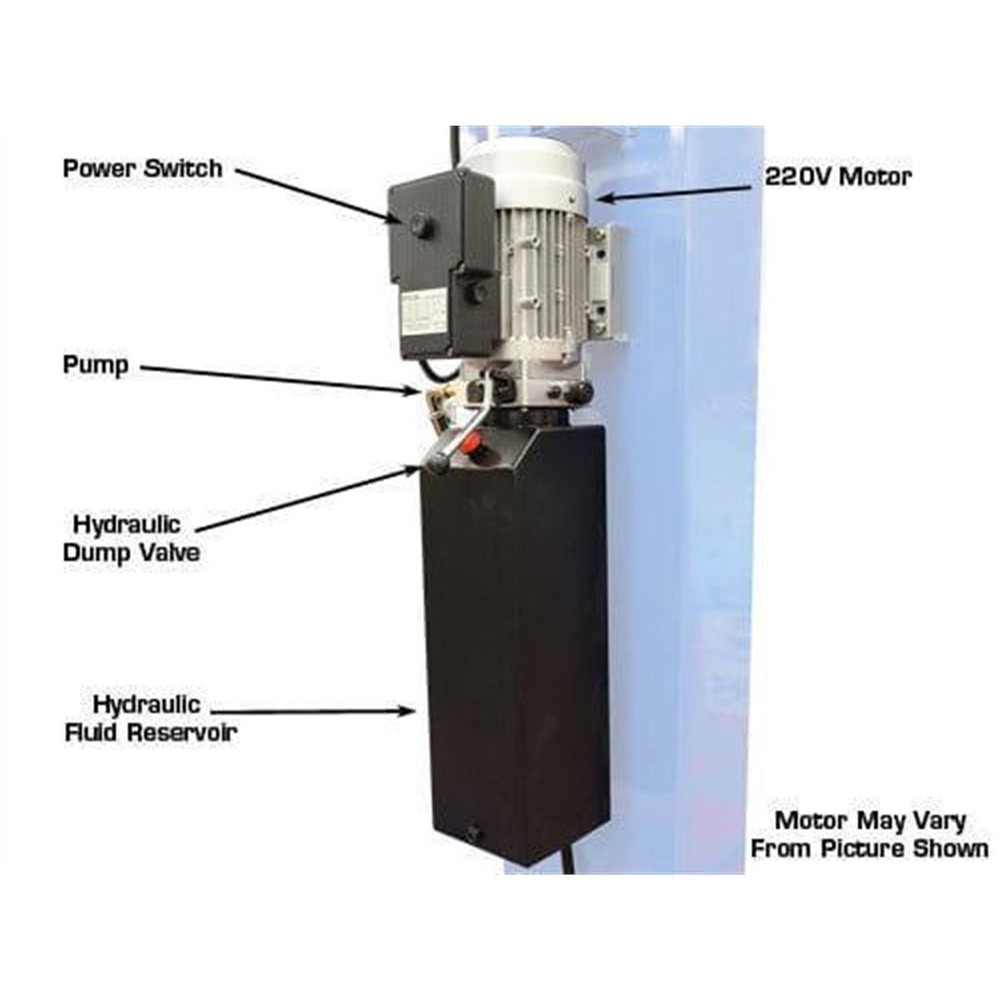

- Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

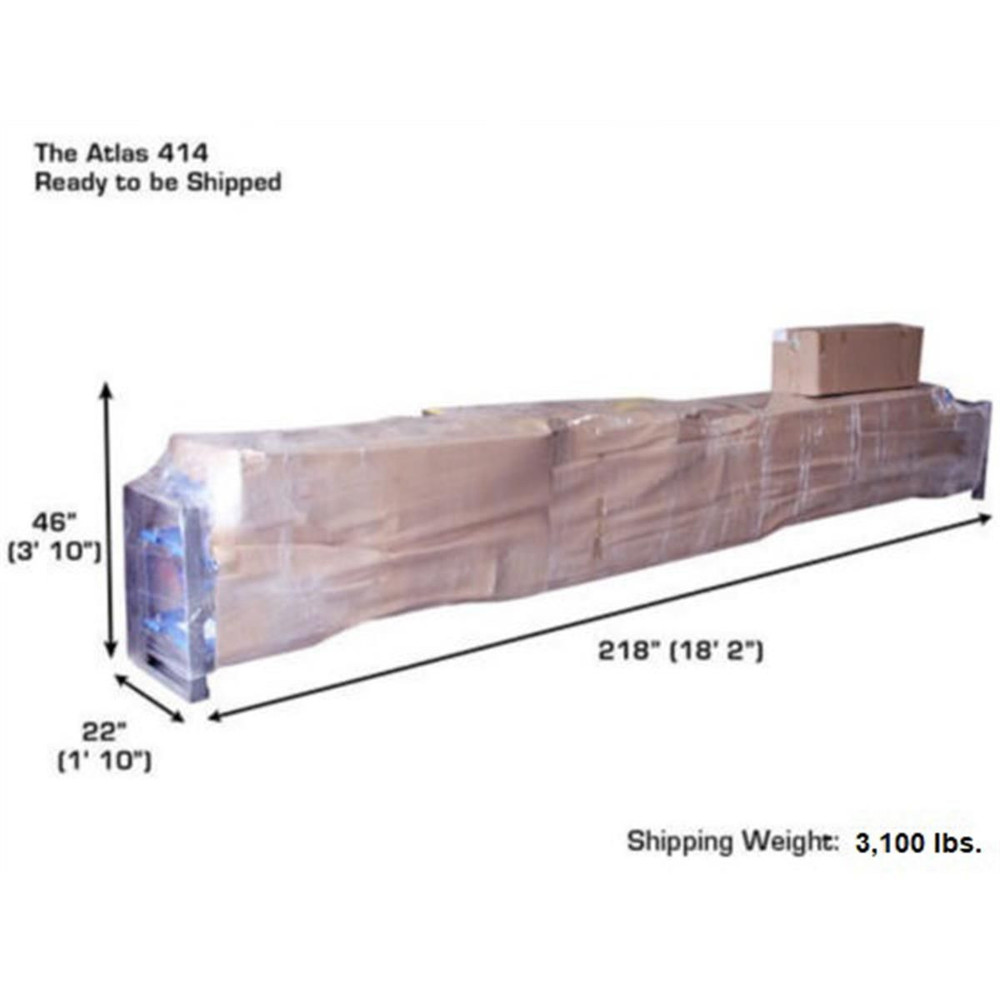

- Shipping Weight 3,100 LBS.
- Requires a minimum of 6″ of concrete with a 3000 psi. rating
Atlas® RJ8000 Specifications
- Maximum Capacity 8,000 lb.
- Maximum Width 66 1/2″ (5′ 6 1/2″)
- Minimum Width 40″ (3′ 4″)
- Distance Between Runway Capability 34 1/2″-55″
- Maximum Lifting Height (With Adapters) 30″
- Air Requirement 70-115 PSI (External Air Supply Required – NOT INCLUDED)
- Shipping Weight 390 lbs.
- Adapter Heights 2 Each 2″, 3″
- Arm Hole/Adapter Peg Size 1.5″
