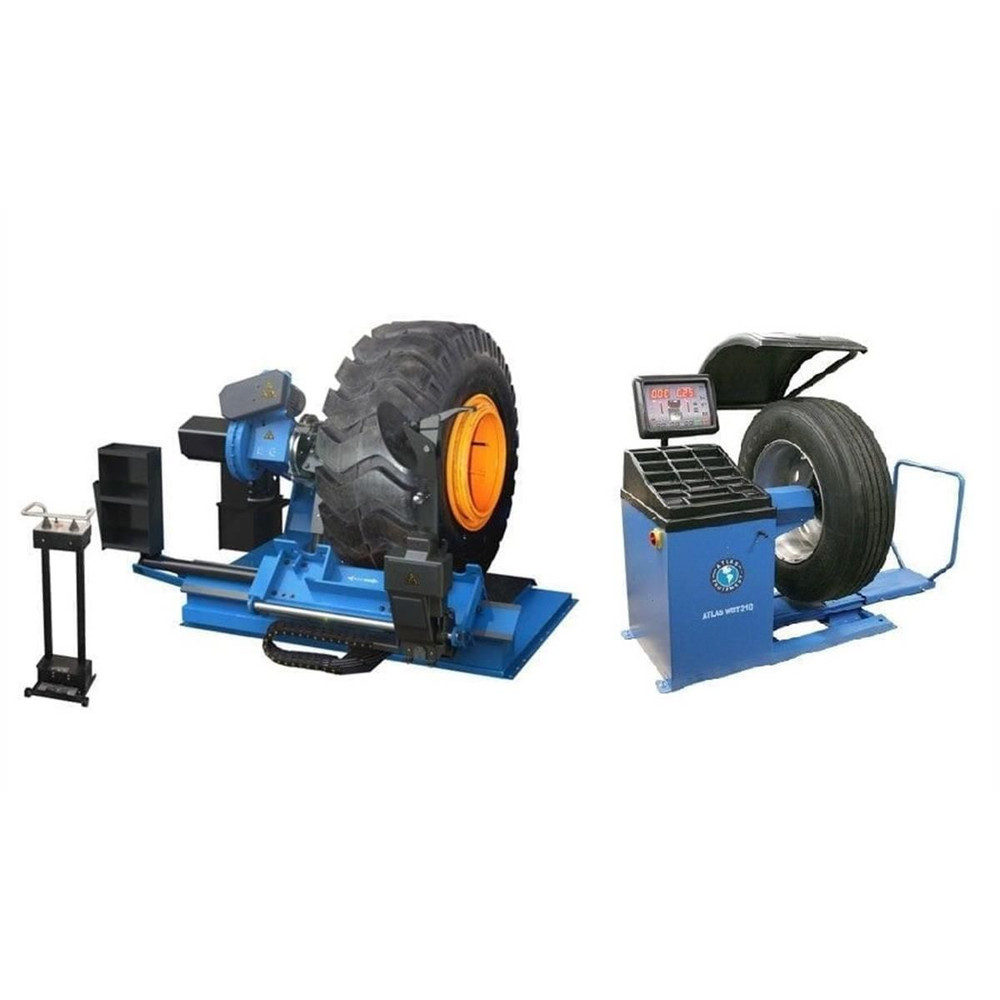

Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo
Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo - Image 2
,

Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo

$24,299.00

+ Free Shipping

Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo

This Combo Package includes the Atlas® TTC306 truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Atlas® TTC306 is very similar to the Atlas® TTC303, but with several additional features. The remote control allows the operator to move the bead breaker disc and mount/demount head automatically. This Super Duty Atlas® truck tire changer is designed and engineered to handle rim sizes from 14 inches to 56 inches and tire diameters in excess of over 97 inches. The Atlas® TTC306 Truck Tire Changer can easily accommodate tires with a maximum width of up to 53 inches. This is the perfect tire changer for those companies that need the extra capacity to change large agricultural and earthmover tires. The Deluxe TTC306 has identical features of those truck tire changers costing over $20,000..

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized ” gumbo-mudders ” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Estimated Delivery Time: 5 - 10

Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo



Atlas TTC306 Truck Tire Changer

2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions

Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

Handles rims from 14″ to 56″ and tire diameters in excess of 97″

Accommodates tires with a max width of up to 53″

Bead Breaker

Mount/Demount Head

Electric/Hydraulic Self-Centering Four Jaw Chuck

5 different rim locking positions

Wired Mobile Control Unit Available (Sold Separately)

Heavy Duty Tire Tool Included

Rim Clamps for Steel and Alloy Wheels Included

Alloy Rim Adapter Set w/ Plastic Inserts Included

Clamping Extensions Included



Atlas WBT210 Heavy Duty Spin Balancer

Cone sets for car and light truck tires included

Cone and spacer set for truck, bus, or implement tires included

Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included

Pneumatic wheel lift (external air supply required – NOT INCLUDED)

Automatic start/stop when hood is lowered/raised

Static and dynamic balancing modes

Rapid optimization (OPT)

Self-Diagnosing and Calibrating

Exceptional stability in reading the unbalance between planes

Display in grams or ounces, and in mm or inches

Wheel Weight Pliers & Wheel Width Caliper Included

Both Machines 1 Year Parts Only Warranty

This part number FREIGHT PREPAID

Atlas TTC306 Specifications

Max Tire Diameter: 98″ (8′ 2″)

Max Tire Width: 53″

Rim Clamping Range: 14″ – 46″

Rim Clamping Range w/ Extensions: 47″ – 56″

Max Wheel Weight: 3968 lbs

Clamping Power: 13173 lbs

Operating Pressure: 0 – 1885 psi

Acoustic Pressure: 70dBA

Bead Breaker Force: 5930 lbs

Tool Arm Positioning: Automatic

Tool Head Positioning: Automatic

Construction: Single Piece Frame w/ Solid Floor-Plate

Hydraulic Motor Power: 3HP 220v +/- 5% (209-231 volts) 3phase, 30 amp breaker required

Chuck Motor Power: 3.5-4HP 220v +/- 5% (209-231 volts) 3phase, 30 amp



Atlas WBT-210 Specifications

Max Tire Diameter 47″

Rim Sizes (Cars And Light Trucks) 10″-32″

Rim Width 1 1/2″-20″

Shaft Size 40mm

Max. Wheel Weight 440 lbs.

Balancing Speed 150 rpm Car-Light Truck Mode/90 rpm Truck Mode

Data Entry All Dimensions Manual Entry

Measurements Standard Or Metric

Accuracy 1 gram Car-Light Truck Mode/10 gram Truck Mode

Weight Position Resolution 1.4 Degrees

Self Calibration Yes

Motor 1/3 HP

Air Requirement 115-140 PSI (External Air Supply Required – NOT INCLUDED)

Power Supply 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required

Shipping Weight 725 lbs.
