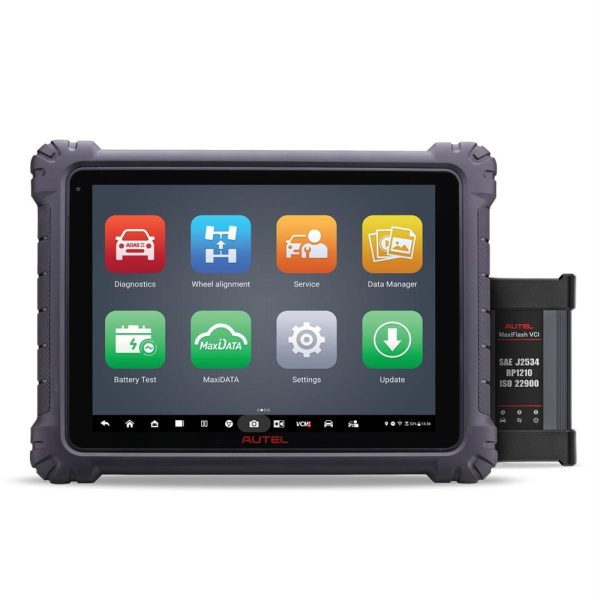

Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet
12.7-inch touchscreen Android-based advanced diagnostics tablet
Includes ADAS calibration and wheel alignment software update
Compatible with IA900WA frame system
Advanced diagnostic functionality compatible with U.S., Asian and European vehicles, 1996 ad newer
Read and Erase codes, view Freeze Frame and view and graph Live Data
Perform Active Test and adaptations and coding
Includes MaxiFlash VCI and J2534 passthru programming device
Covered by one year limited warranty
Includes one year of free software updates
Operating System: Android 7.0
Processor: Octa-core processor (4 x 2.3 GHz; 4 x 1.7 GHz)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.7 inch with 2732 x 2048 resolution and capacitive touchscreen
Camera: Rear: 16 Megapixel, Autofocus with Flashlight, Front: 5 Megapixel
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Input Voltage: 12V/3A Adapter
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temperature: -10 to 60°C (14 to 140°F)
Dimensions (WxHxD): 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight: 2.18kg (4.81 lb.)
Protocols:
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
