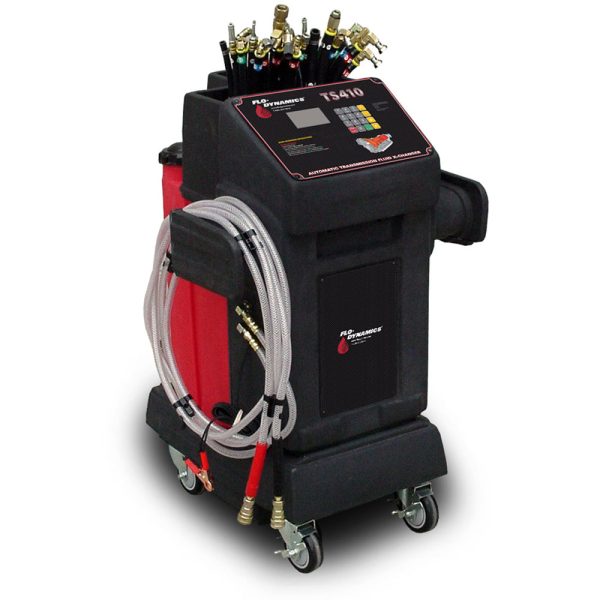

Flo-Dynamics TS410 ATF Inline Exchanger
Features
Powerful 2.5 gallon per minute rated pump for unmatched speed
Fully automatic operation
Special chemical flushing mode
Proven, accurate fluid measurement (+/-3%)
Individual ADD and REMOVE fluid buttons
Power interruption memory
Drains transmission pan for filter change
24 quart capacity new and waste fluid tanks with 21 quart exchange capability
Pause button
12 volt powered
Volt meter
Adapter rack drains into the waste tank keeping the adapters dry and organized
Rotocast polyethylene body and tanks won’t scratch vehicle
Small platform saves space
Quart counter
Durable 5-inch locking caster wheels
Clear service hoses provide visual confirmation of fluid exchange
6.25” x 3.5” fully interactive easy-to-use color touch screen

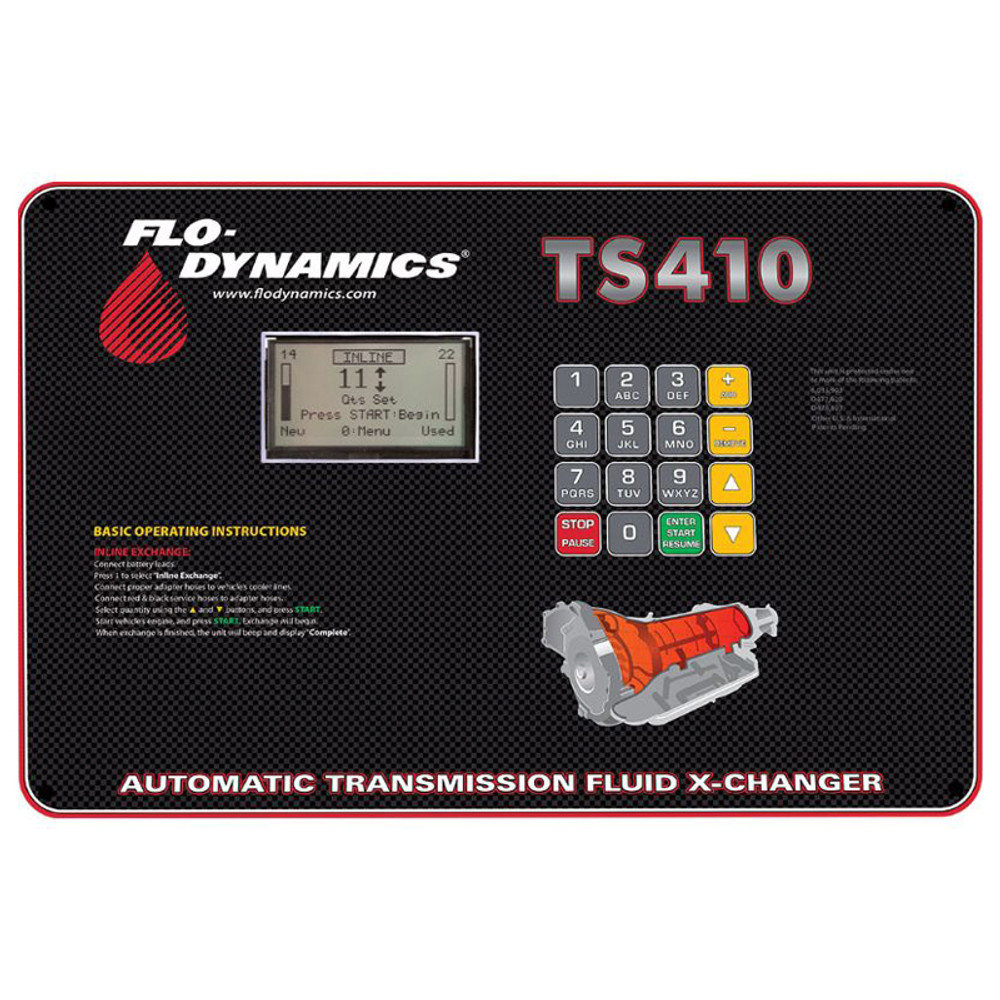

LCD Panel Features
Ability to select 1 to 20 quarts exchange amount
Ergonomically correct working height
ADD/REMOVE fluid feature
Quart counter
Pause button
Fluid totalizer
Reverse hoses indicator
SPECIFICATIONS
Dimensions: 39”H x 24 3/4”W x 25”D
Weight: 133 lb.
New Fluid Tank: 24 quart
Used Fluid Tank: 24 quart
