Launch Tech USA X-613 Mobile Wheel Aligner
Features and Benefits:
Plug-and-Play Operation: Does not require installation, wiring, or calibration
ready to use upon delivery.
Space Efficiency: Removes the need for beams and cabinets, reducing the space required for operation.
Measurement Speed: Produces high-precision four-wheel alignment results within 30 seconds.

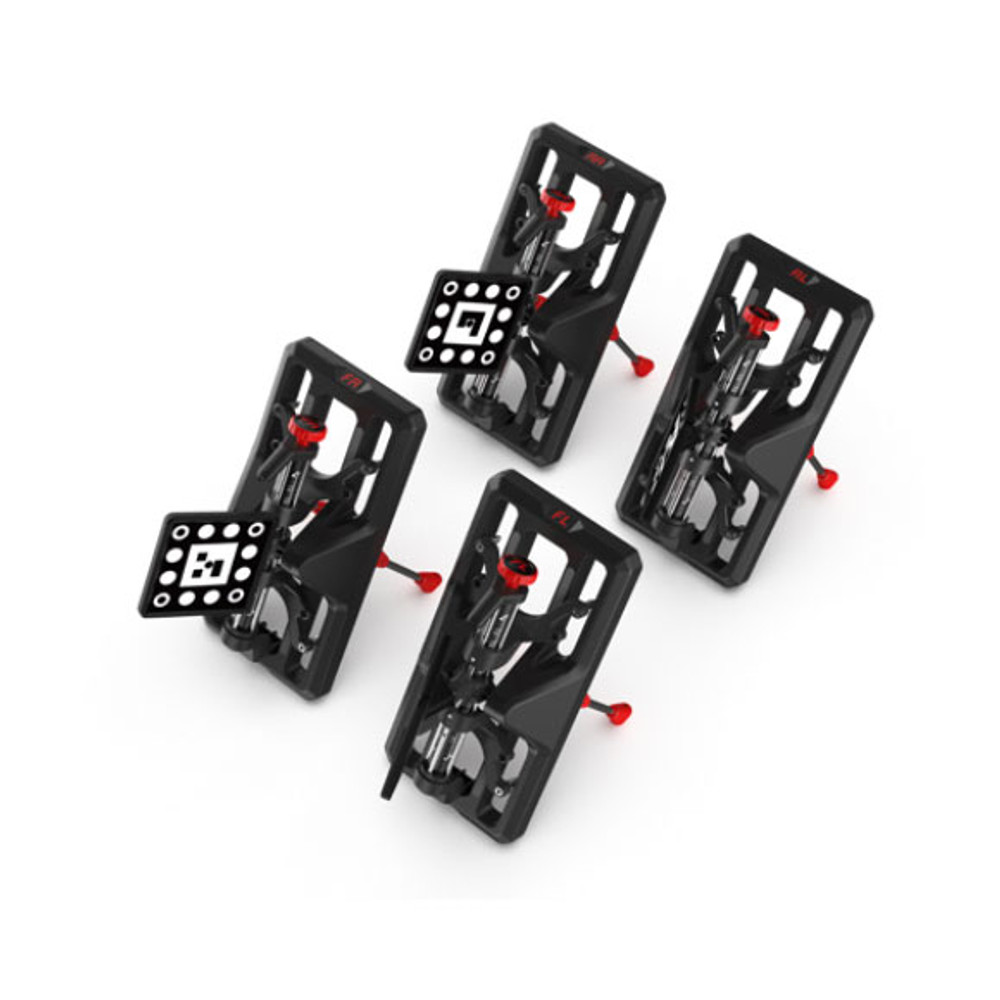

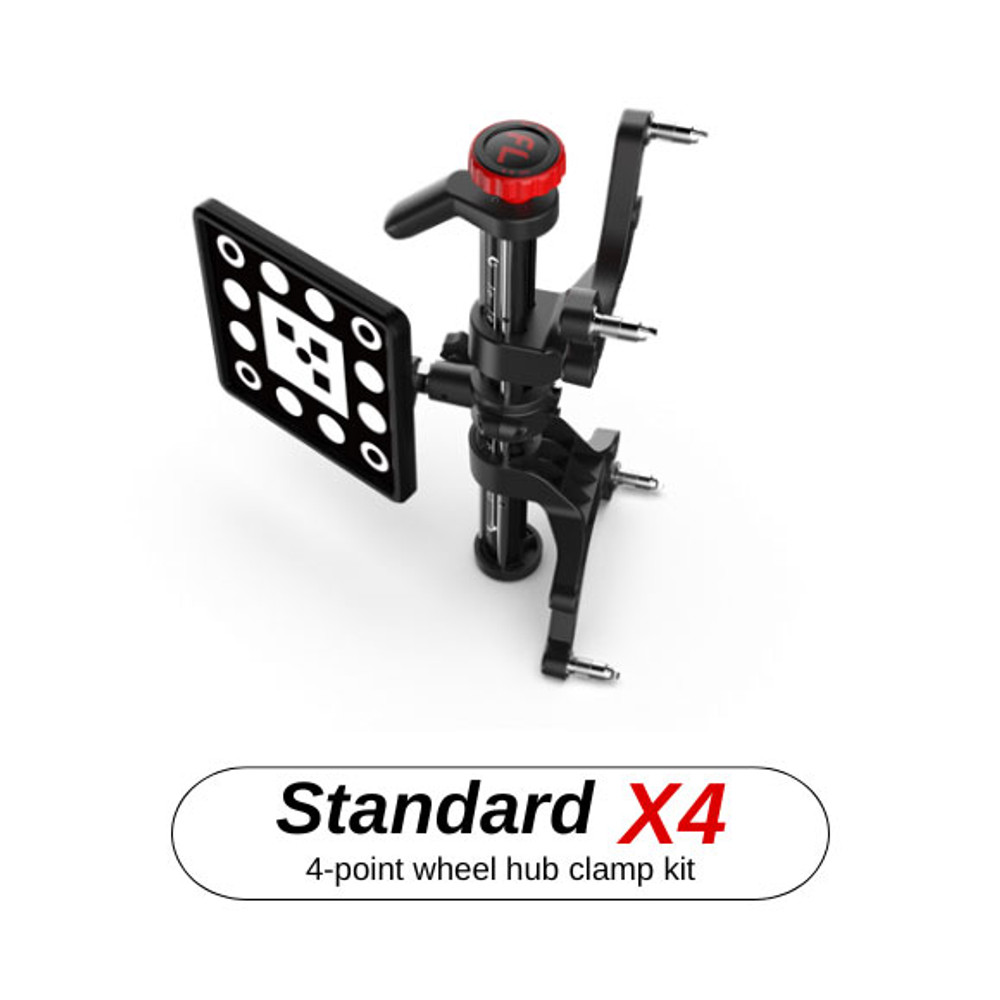

Wheel Clamp Design: Patented magnesium alloy single axle clamp, lightweight and durable, with a built-in scale for pre-adjustment based on tire diameter.

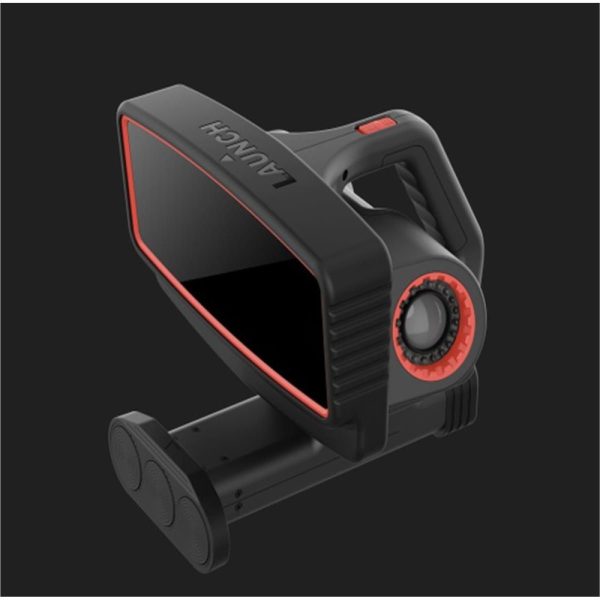

Magnetic Measurement Units: Operates without assembly or wiring
Designed for immediate use.
Wireless Communication: Transmits measurement data to a scanner for display and adjustment.
Compact Packaging: Reduces transport weight and volume by 70-80% compared to traditional 3D wheel alignment systems.
Specifications
Measurement Item Measurement Range
Toe Angle ±20°
Camber Angle ±10°
Kingpin Castor Angle ±20°
Kingpin Inclination Angle ±20°
Track Width 1290~1900 mm
Wheelbase 1940~4600 mm
Wheel Hub Diameter 275~640 mm
