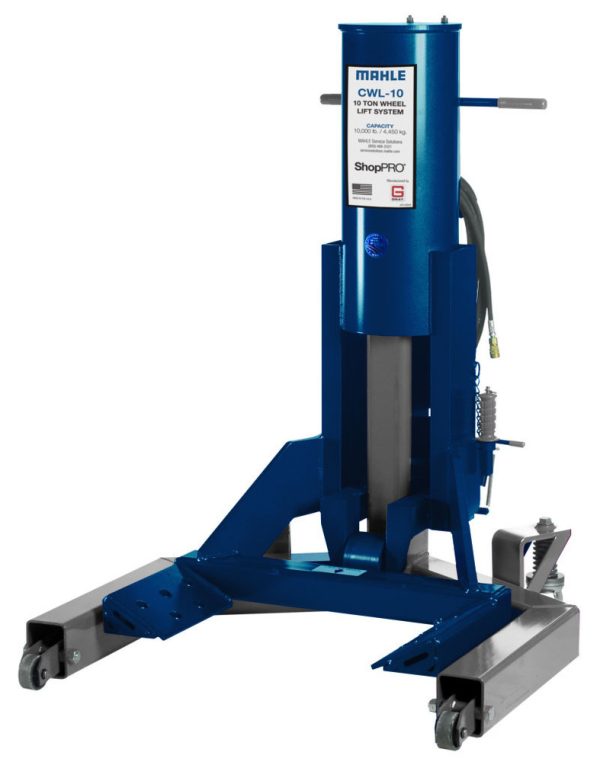

Mahle CWL-10 Wheel Lift 10 Ton

$9,870.00

+ Free Shipping
Mahle CWL-10 Wheel Lift 10 Ton
Estimated Delivery Time: 5 - 10

FEATURES

Built-in vehicle support stand feature allows complete open access under the vehicle
Lift entire vehicle with patented controls and shop air
Perfect for shops with low ceiling heights
Small wheel adapters
Dual trigger control valve allows synchronized raising and lowering of vehicle
Sold in pairs
US Patent D357,106 and 5,484,134

CWL-10 FEATURES
Easily handles wheel sizes from 21″ to 24.5″
Optional small wheel adapters available to accommodate 14″ to 21″ wheels

Product Specifications

Capacity Per Set 20,000 lb (9,072 kg)

Minimum Start Height Floor Level

Maximum Lift Height 24 in (61 cm)

Power Shop Air

Required Air Pressure 160 psi (11 bar)

Stroke 24 in (61 cm)

Minimum Wheel Diameter (w/ Adapters) 16 in (41 cm)

Minimum Wheel Diameter (w/o Adapters) 19.5 in (41 cm)

Maximum Wheel Diameter 24.5 in (62 cm)

Dimensions (H x W x D) 53.3 in x 41.6 in x 44.3 in (135 cm x 106 cm x 112 cm)

Shipping Weight 1,000 lb (454 kg)
