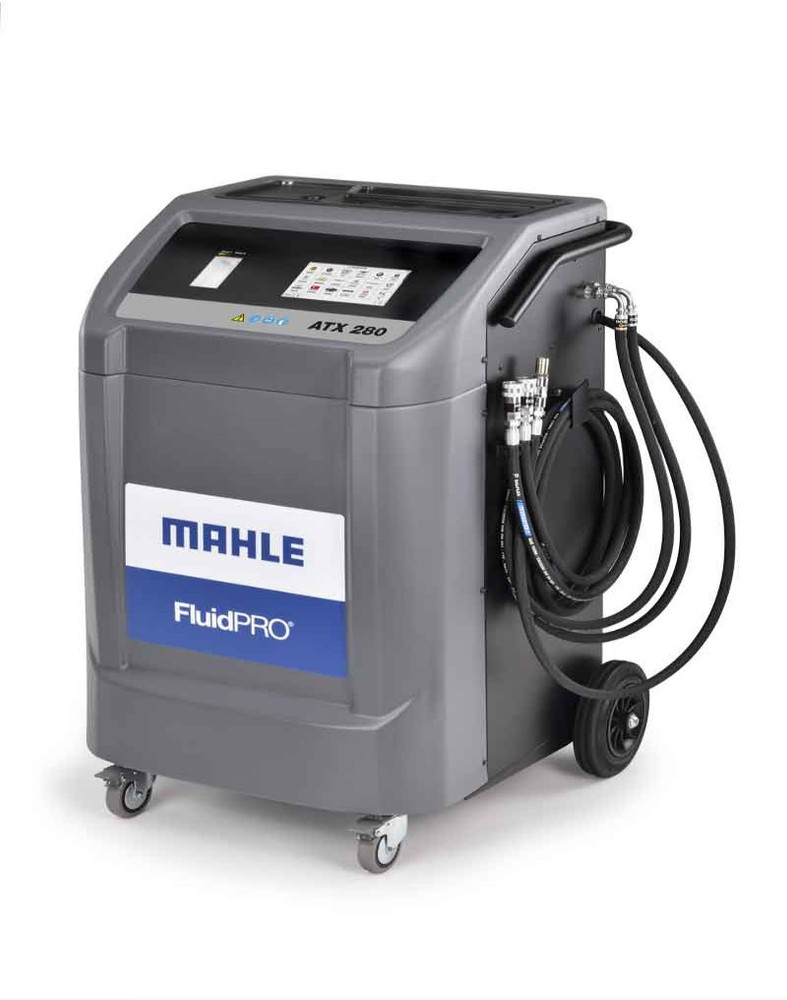

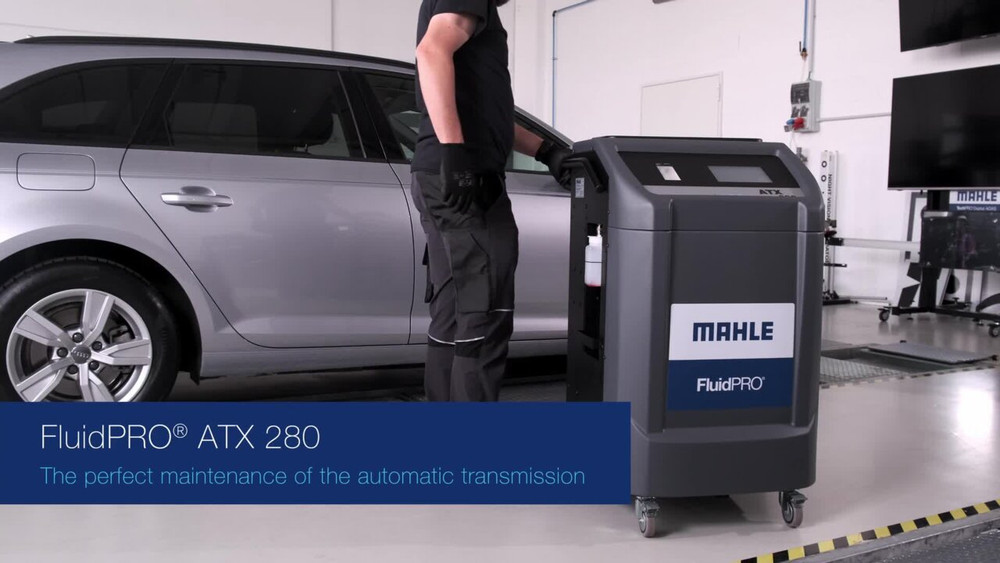

Mahle FluidPRO ATX 280 Transmission Fluid Exchange System with Adapters
Key Features
7“ touchscreen LCD display with graphical interface
New design, same family feeling as MAHLE stations
New GUI, even easier to use
WiFi connection
App for remote display
On board vehicle database for transmission pictures, service info, fill capacities, and oil type
19 languages supported
Built-in database containing 40+ years of vehicle transmission specifications
Nearly limitless on-board service record storage
Automatic oil flow direction detection
Integrated onboard additive tank for precise detergent/oil injection
Zero cross contamination process
Automatic oil temperature monitoring to start only when optimal oil transfer temperatures are reached
Interchangeable tank and 10-second new oil tank change out
Fast full exchange service times of 2-5 minutes and 6-10 minutes in “Dipstick” mode
Includes ATX Standard Adapter Kit (300 80048 00)
Technical Data
| Control | Automatic, Software-assisted with 7“ Color Touch Display |
| New oil filter | 90µ mesh filter |
| Sight glasses | Visual inspection of oil quality |
| Dipstick function | Integrated with hoses ø6mm and ø10mm |
| Zero-cross-contamination | Circuit cleaning function after oil type change |
| Hoses | 2 x 3 m (service hoses), 1 x 1.5 m (for draining the waste oil) |
| BOOST function | Integrated |
| Service report print function | Via WiFi (NEXUS print) or USB export |
| Top grid | With A/T adapters tray |
| Oil pump | 1 X hydraulic oil pumps of 8 l/min each and 1 X hydraulic oil pumps of 6 l/min each; PWM-controlled |
| Menu languages | 15 different languages |
| Power supply | 110/230 V, 50-60Hz |
| Service and Software Update | Via WiFi connection, Re.Solve function via WiFi |
| Smartphone App | FluidPRO® ATX Remote Viewer |
| Dimensions/ weight (H x L x W) | 120 x 74 x 74 cm, 62 kg |
