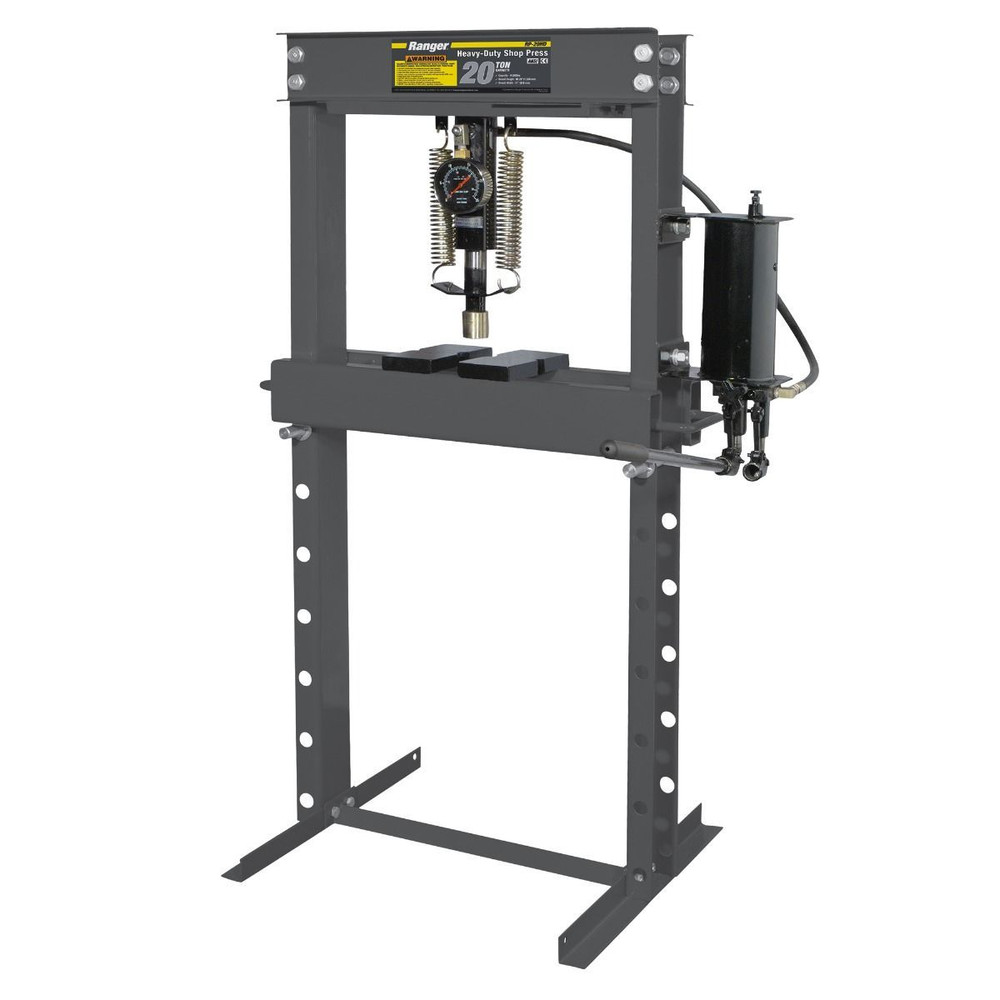

Ranger 20 Ton Commercial Grade Hydraulic Shop Press
Specifications:
Ideal for pressing bearings, U-joints, etc.
Hydraulic cylinder moves laterally for better versatility

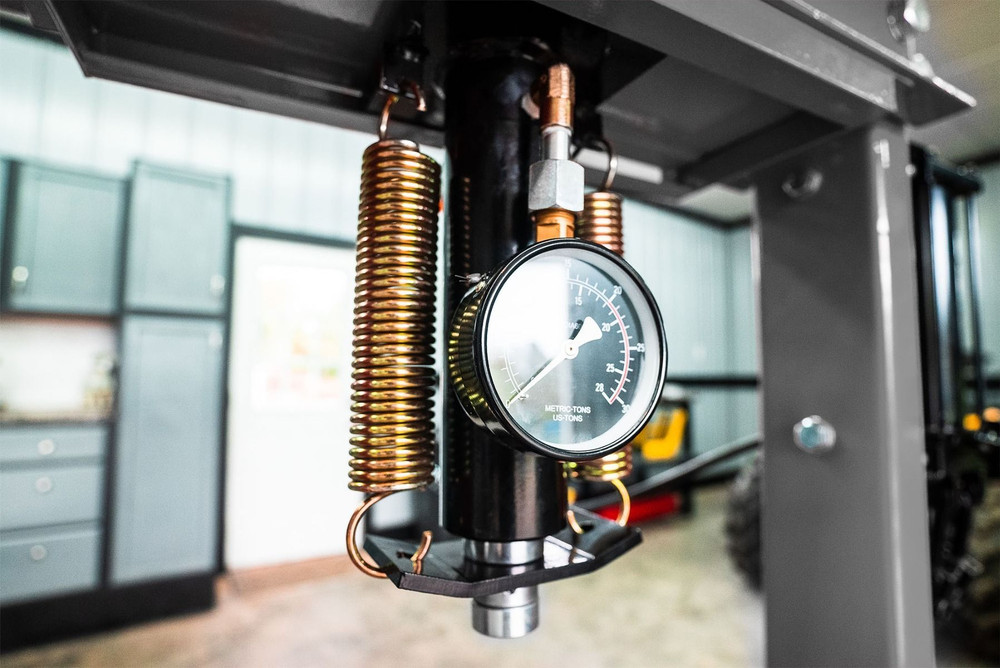

Integrated 4″ diameter 20-ton pressure gauge

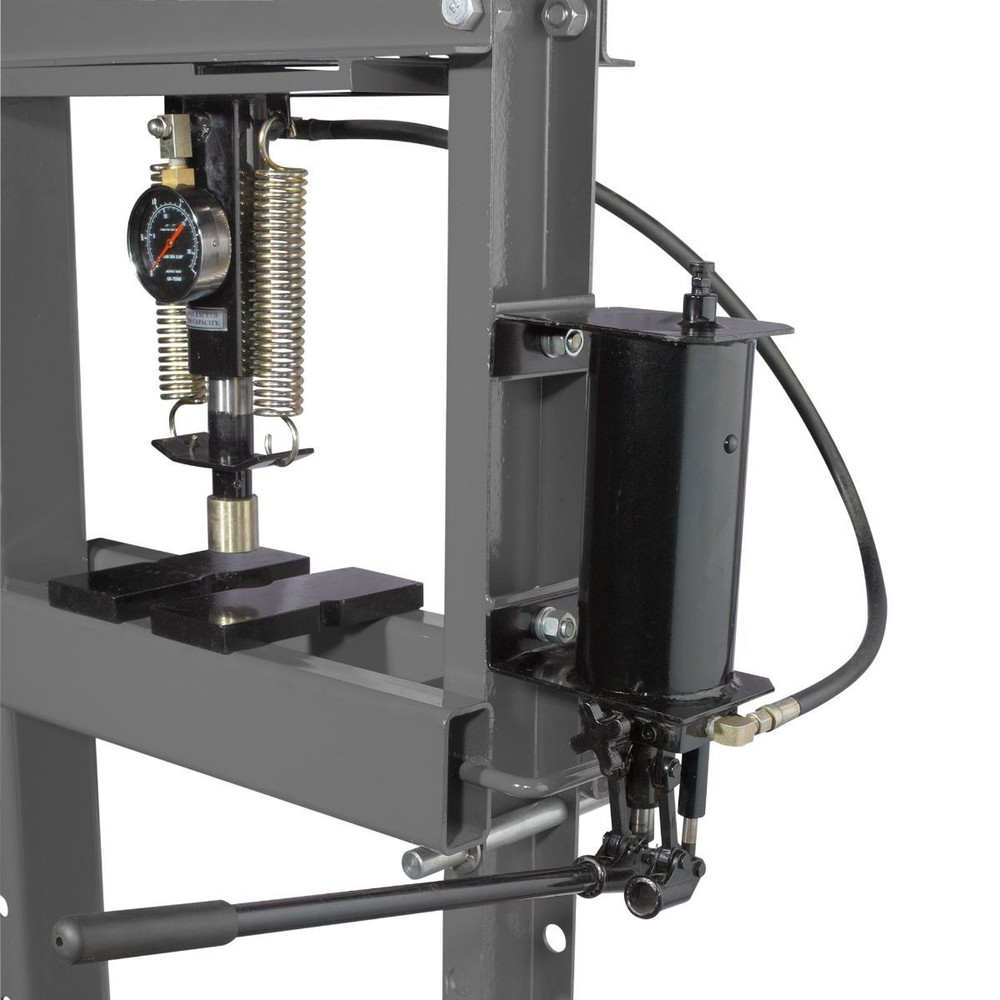

Independent two-speed hydraulic pump for maximum performance
Adjustable table height
Heavy steel construction
Includes 2 heavy-duty press plates
Capacity: 40,000 lbs. / 18,144 kg
Overall height: 60-1/4″ / 1,530 mm
Overall width: 37″ / 940 mm
Inside width between rails: 24″ / 610 mm
Adjustable table height: 7-1/2″ – 36-1/4″ / 190 mm x 921 mm
Base dimensions: 27-1/4″ x 26″ / 692 mm x 660 mm
Cylinder stroke: 5-1/2″ / 140 mm
Shipping weight: 274 lbs. (124 kg)
Shipping dimensions: 61″ x 13″ x 15″ (1,754 mm x 330 mm x 381 mm)
