Ranger RS-500D Professional Spray Wash Cabinet

Estimated Delivery Time: 5 - 10

Ranger RS-500D Professional Spray Wash Cabinet

Powerful, Safe and Rapid Hot Wash Spray Cabinet by Ranger

A large cabinet size and solution tank makes the RS-500D versatile and productive. By using an octagonal full-opening door, we’ve enhanced access to the turntable to enhance the operator’s loading capabilities. Simple operating controls, brass nozzles, a gasket-free door and a high-capacity 70 gpm pump demonstrate Ranger’s commitment to enhanced performance and productivity without a single sacrifice in quality. Like all Ranger spray wash cabinets, the RS-500D is built to last. We constructed the cabinet and door with heavy-duty 12-gauge steel and then coated it with an industrial two-step primer and powder coat finish. All-around performance, durability and improved operator convenience make the RS-500D the definitive choice among professionals worldwide.

Features

  • Heavy-duty steel construction
  • Safe aqueous operation: No harsh chemicals
  • 50 gallon tank
  • Dual water heaters for quick startup
  • Heated cabinet w/ adjustable thermostat
  • High-power spray jets clean parts fast
  • Automatic low water shutoff
  • Removable tank screen
  • Stainless oil skimmer
  • Removable parts tree
  • Powder coat finish
  • Stainless steel nozzles

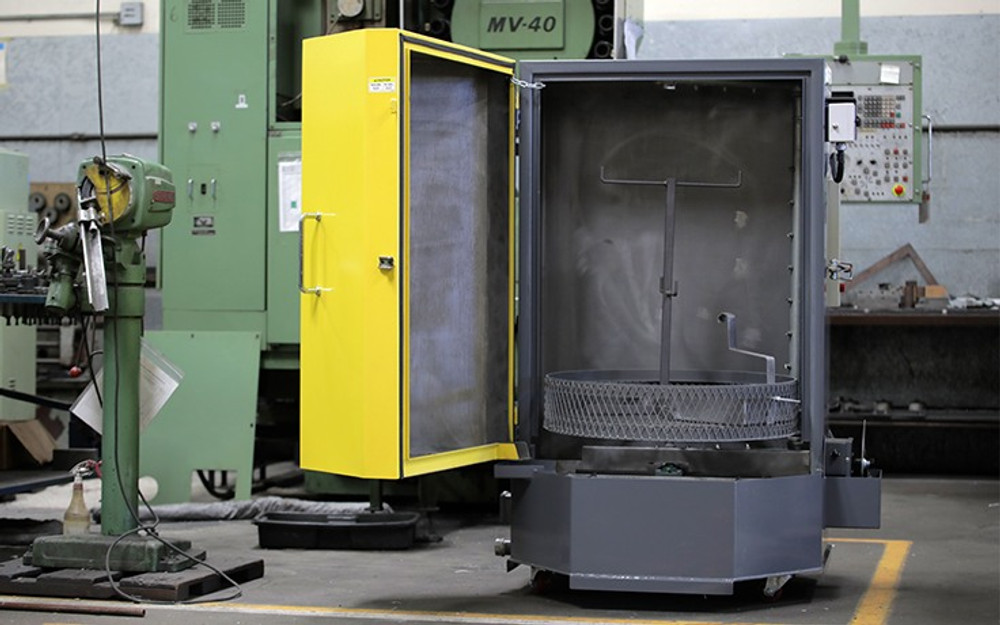

  • Full opening octagonal door

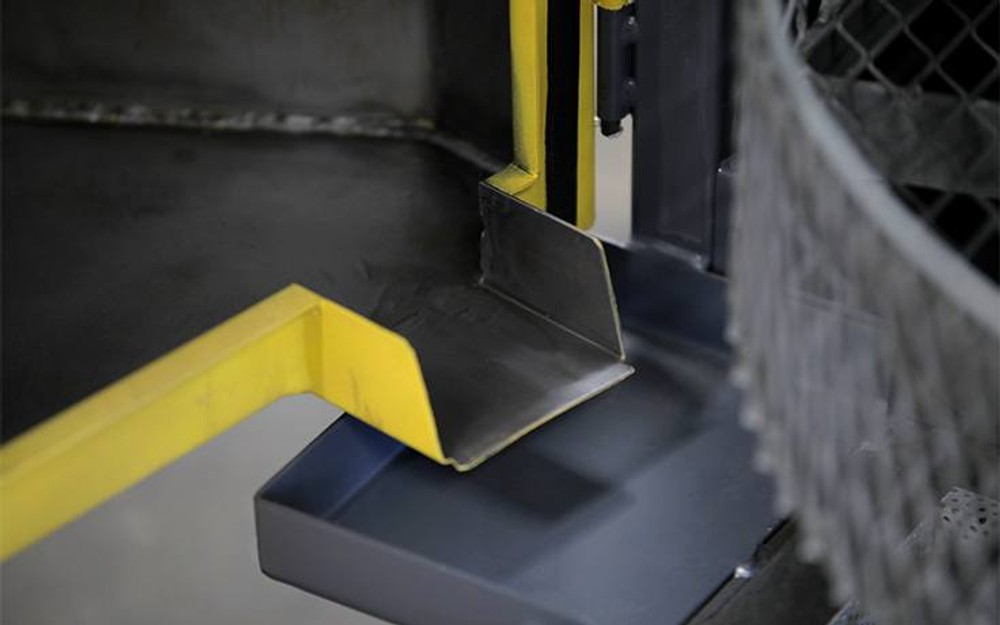

  • Large drain pipe
  • Heavy-duty casters
  • Friction-drive turntable system
  • Neoprene-sealed wash cabinet
  • Contamination-proof interior welds
  • Gasket-free door
  • Small parts basket
  • Stainless steel handles
  • Free bucket and soap included

Specifications

Overall height: 66″ (1,676 mm)
Inside height: 43″ (1,092 mm)
Inside width: 32″ (813 mm)
Turntable diameter: 30″ (762 mm)
Tank capacity: 50 gallons
Recommended floor space: 44″ x 43″ (1,118 mm x 1,092 mm)
Load capacity: 500 lbs. (227 kg)

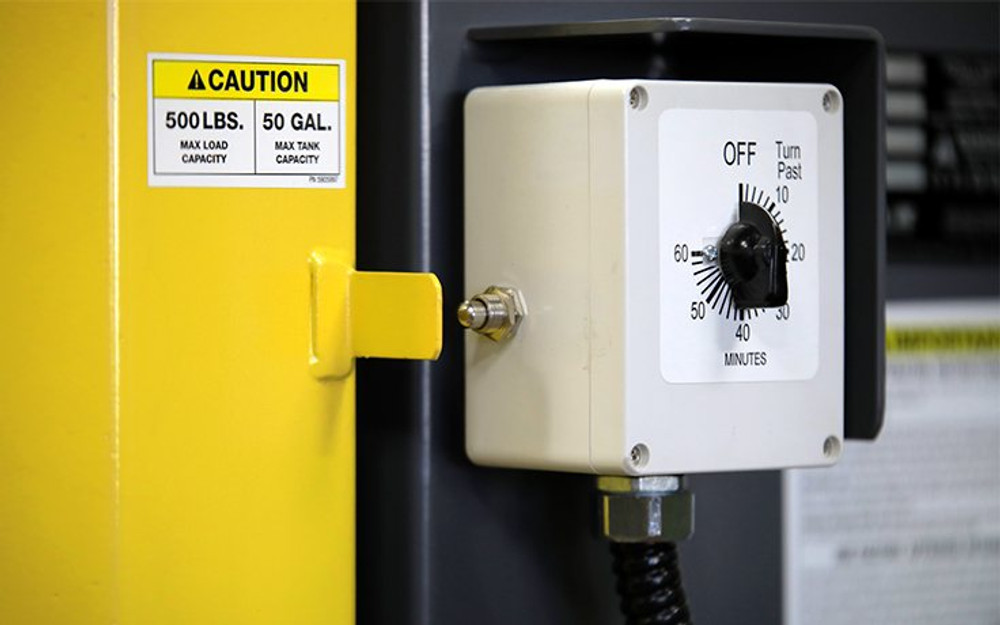

Cycle timer: 0 – 60 min
Brass nozzles: 18
Steel construction: 12 Gauge / .109 thickness

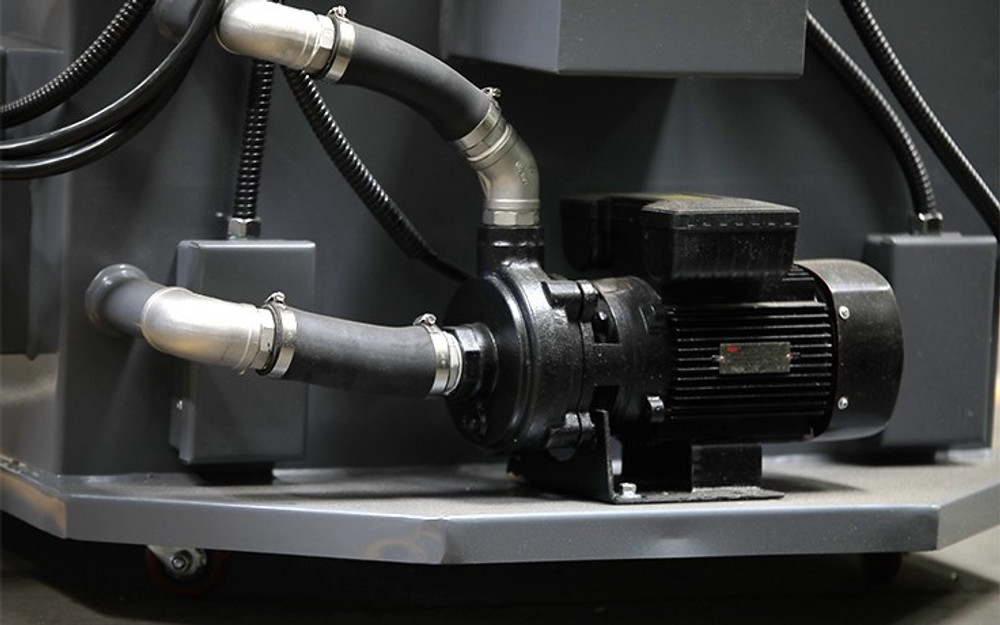

Pump output: 75 psi @ 70 gpm
Motor: 1 HP / 220 VAC / 60 Hz / 1 Ph
Electric heater: 6 kW
Water temperature: 160° – 180° F (71° – 82° C)
Shipping weight: 680 lbs. (308 kg)
Shipping dimensions: 46” x 46” x 68” (1,168 mm x 1,168 mm x 1,727 mm)
