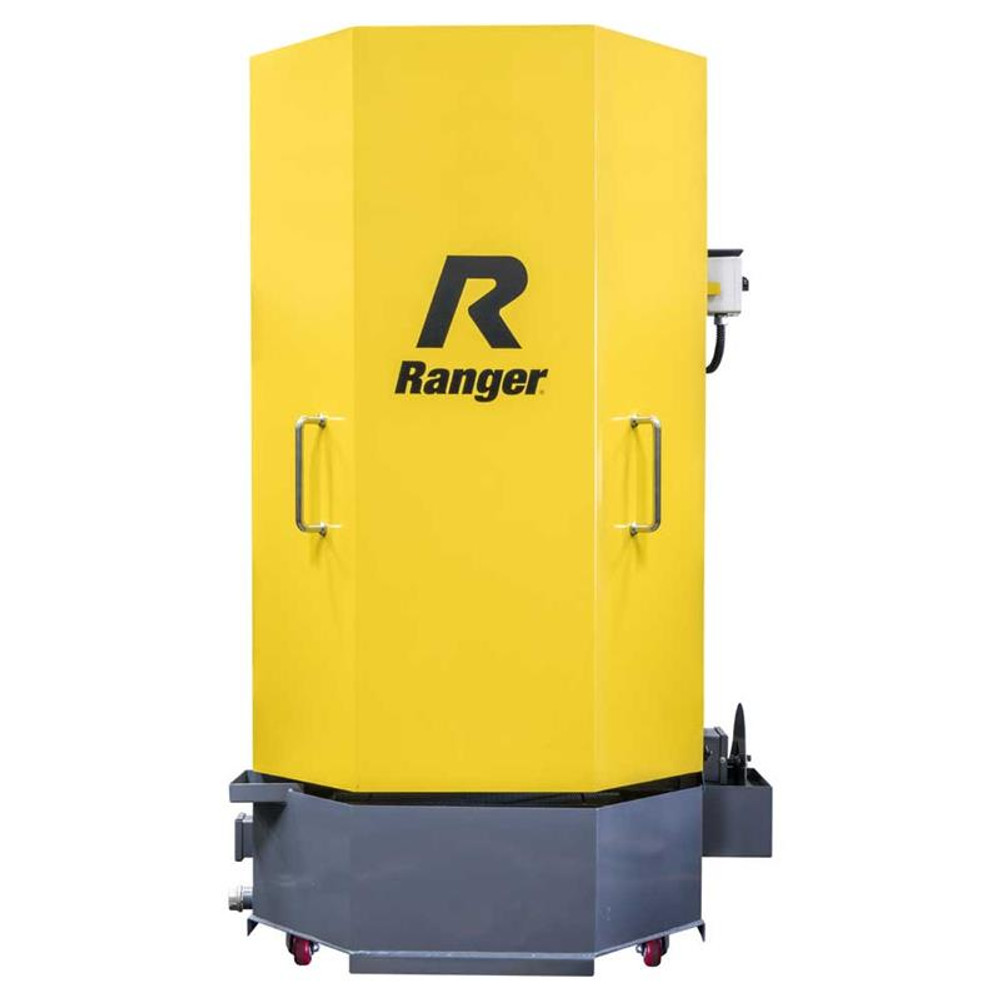

Ranger RS-750D Truck Spray Wash Cabinet
Ranger’s Extra-Massive Hot Wash Spray Cabinet
Sometimes a product is designed so well, hardly anything needs to change. That’s how we felt about the RS-500D parts washer, but we also realized that some car and truck components are just too massive to fit in the cabinet. Plus, a larger enclosure means more parts can get washed in fewer cycles. That’s why we made the RS-750D, the 53-gallon, 1,000-lb. capacity parts washer to end all parts washers. This machine is truly massive. It stands over 6’ tall and has that coveted look of power you want in your shop. It’s not just looks, of course. The RS-750D holds twice as much weight as the RS-500D and features a longer spray system to accommodate the increased size. That means a larger supply of bigger components gets just as clean as before. The only difference is that now you can save time by washing more stuff at a time.
Features
Heavy-duty steel construction
Safe aqueous operation: No harsh chemicals
53 gallon tank
Dual water heaters for quick startup
Heated cabinet w/ adjustable thermostat
High-power spray jets clean parts fast
Automatic low water shutoff
Removable tank screen
Stainless oil skimmer
Removable parts tree
Powder coat finish
Stainless steel nozzles

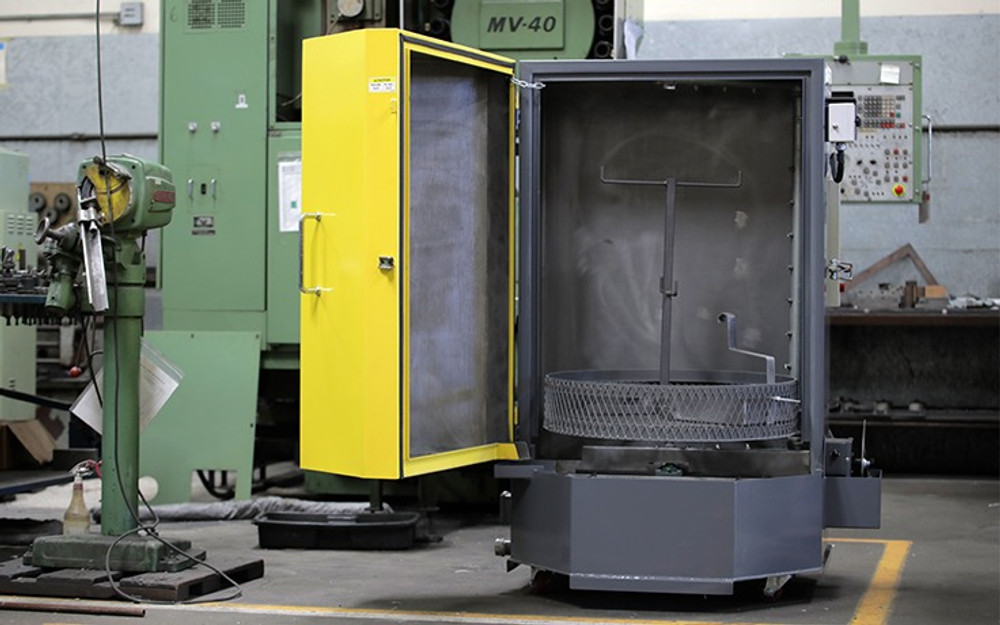

Full opening octagonal door

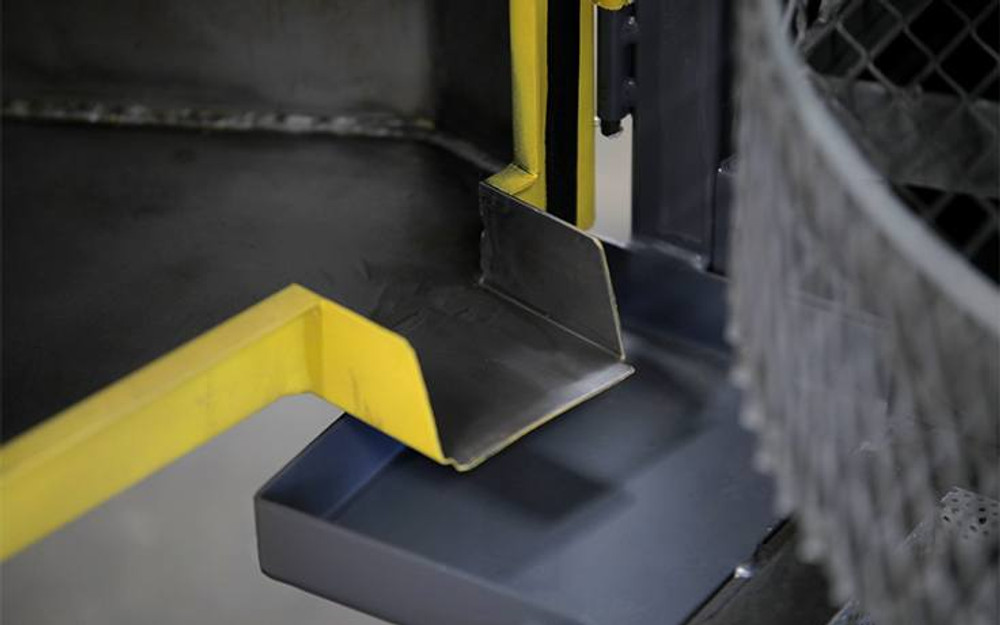

Large drain pipe
Heavy-duty casters
Friction-drive turntable system
Neoprene-sealed wash cabinet
Contamination-proof interior welds
Gasket-free door
Small parts basket
Stainless steel handles
Free bucket and soap included
Specifications
Overall height: 78″ (1,981 mm)
Inside height: 54″ (1,372 mm)
Inside width: 32″ (813 mm)
Turntable diameter: 30″ (762 mm)
Tank capacity: 53 gallons
Recommended floor space: 44″ x 43″ (1,118 mm x 1,092 mm)
Load capacity: 1,000 lbs. (454 kg)

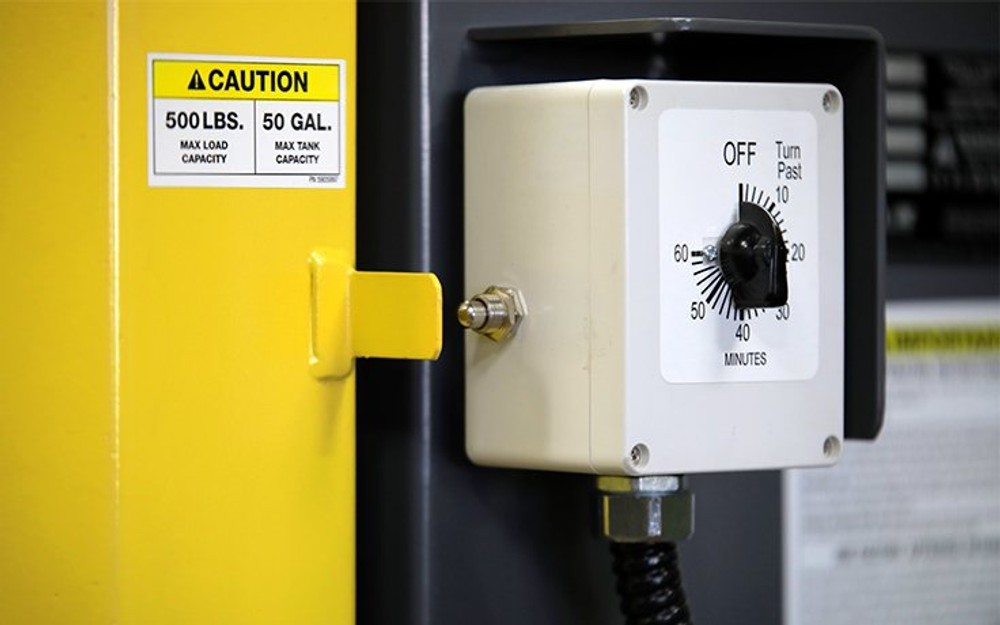

Cycle timer: 0 – 60 minutes
Brass nozzles: 22
Steel construction: 12 Gauge / .109 thickness

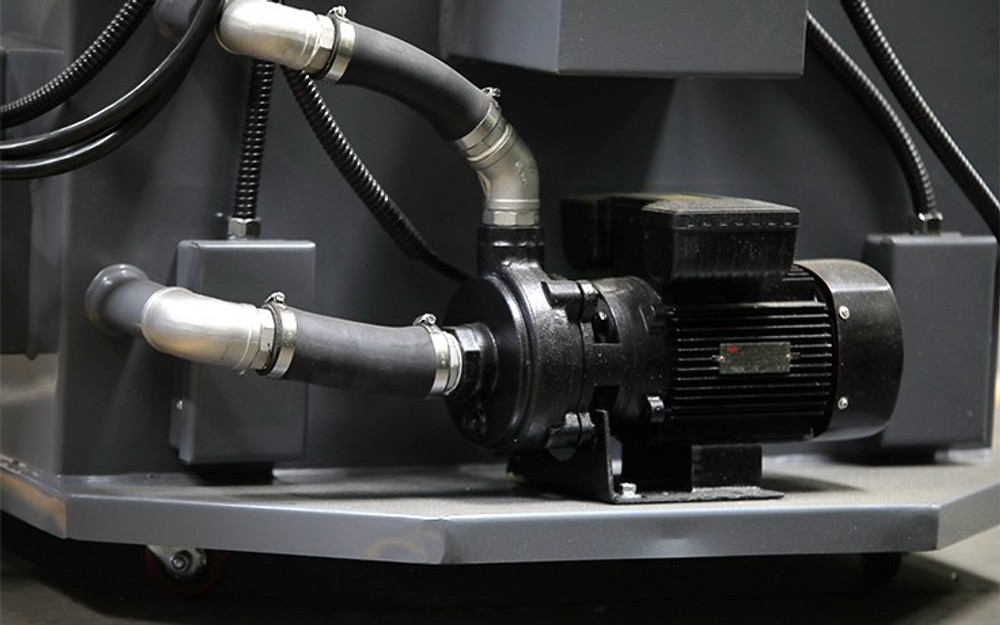

Pump output: 70 psi @ 70 gpm
Motor: 1 HP / 220 VAC / 60 Hz / 1 Ph
Electric heater: 6 kW
Water temperature: 160° – 180° F (71° – 82° C)
Shipping weight: 746 lbs. (338 kg)
Shipping dimensions: 46” x 46” x 80” (1,168 mm x 1,168 mm x 2,032 mm)
