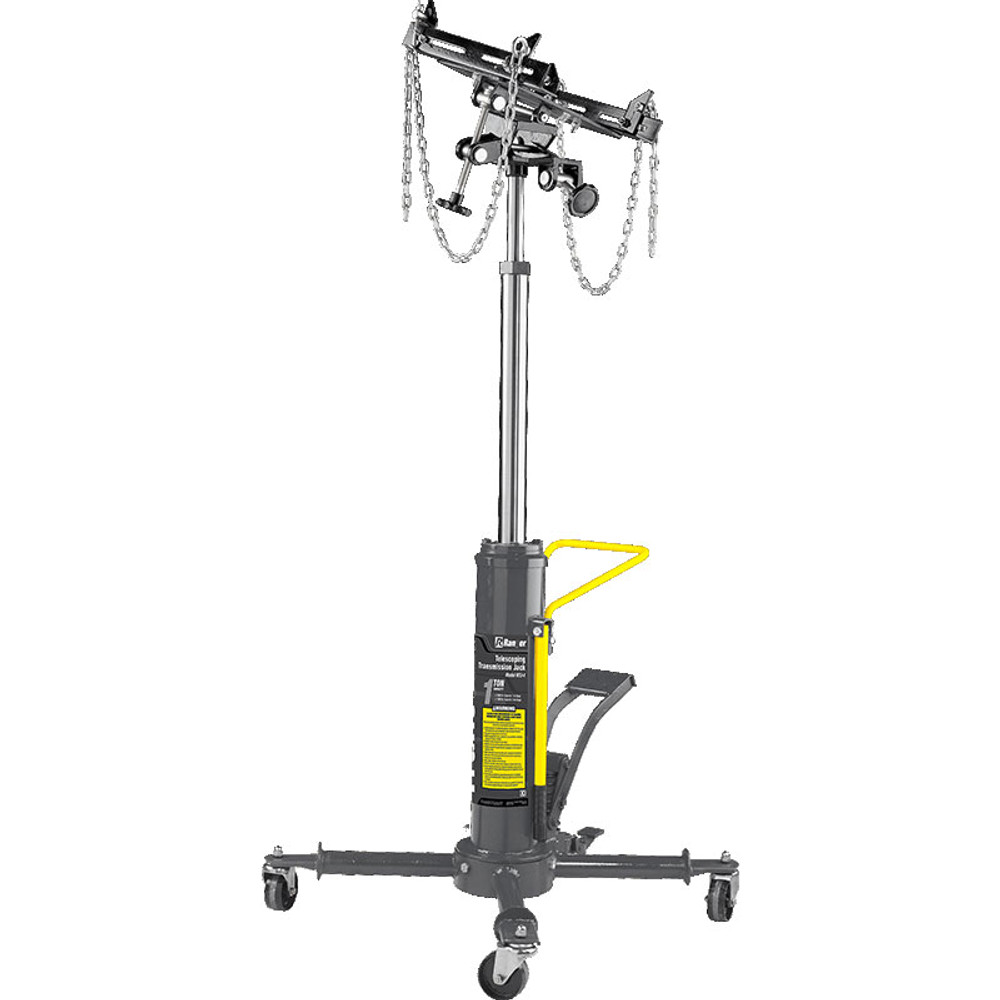

Ranger RTJ-1 1 Ton Capacity Telescoping Transmission Jack

TransJak’s heavy lifting capabilities and top-notch construction make it the transmission service professional’s first choice. Remove, transfer and install transmissions, transaxles and other drive-train components with ease. The fully-adjustable/sliding saddle adapts to just about any passenger car and light truck transmission or assembly. Plus, with its heavy-duty chain anchors and fail-safe overload system, you can feel secure—even with all that metal up in the air. It’s just one of the reasons why The TransJak is America’s most popular transmission jack.

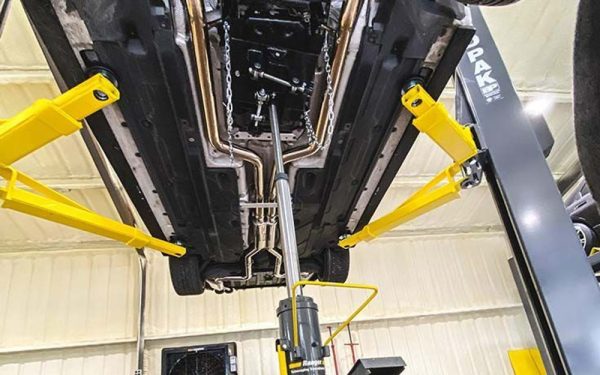

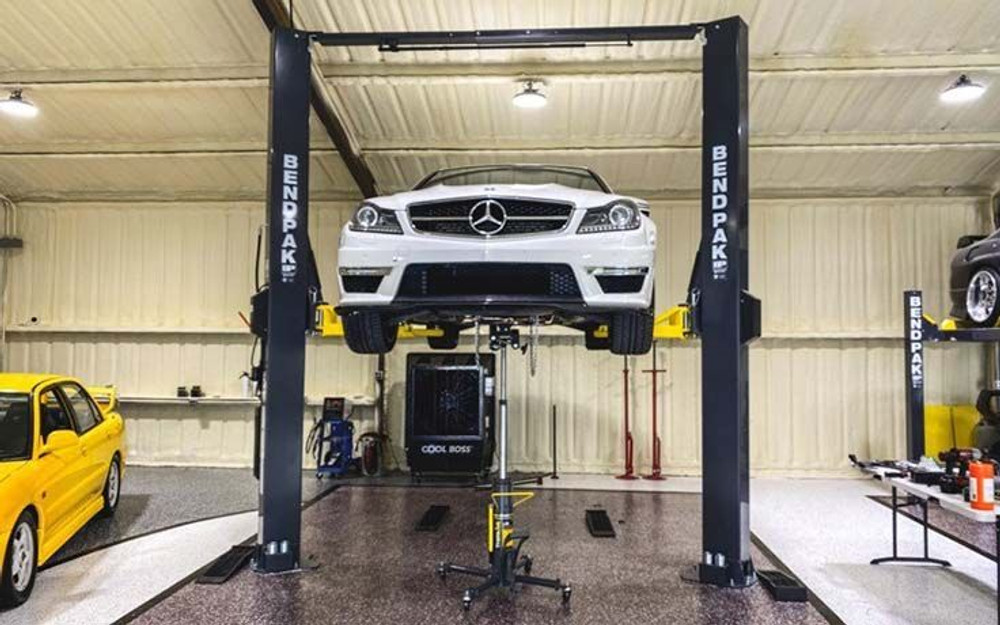

Once your car lift of choice has lifted the vehicle in need of service, just slide our transmission jack into place, adjust its position using the convenient pull-handle and start pumping with the ergonomically designed foot-pedal. This particular model is so popular because it services most transmissions that mechanics are likely to encounter. Its 71” max rise makes it an ideal choice for operating under full-sized car lifts. You never have to worry about straining yourself like so many DIY’ers (and some professionals) do trying to take shortcuts during transmission service.

Transmission work doesn’t need to be any more dangerous than you make it. With double-sealed hydraulics, heavy-duty anchor chains and robust body construction, a well-balanced transmission jack isn’t going anywhere. Don’t risk hurting yourself or damaging your vehicle parts: an affordable and top-notch jack is at your disposal when you choose the Ranger TransJak.

Estimated Delivery Time: 5 - 10

Ranger RTJ-1 1 Ton Capacity Telescoping Transmission Jack

Specifications:

Foot-operated pump

Two-stage design

Adjustable saddle tilts two ways

Saddle slides the other two directions

Heavy-steel construction for maximum durability

Double-sealed hydraulics to prevent contamination for longer service life

Heavy-duty chain anchors keep loads secure

Steel roller bearings are included underneath the table and on the ends of the adjustment screw to minimize friction and allow for effortless table adjustment even when loaded

Fully adjustable universal saddle adapts to passenger car and light truck automatic transmissions and transaxle assemblies

Fine-thread adjustment screws with oversized knobs make adjusting the table a cinch

Two-stage design provides an extended lifting height of over 73″

Hardened chrome-moly ram prohibits rust from entering hydraulic system

Two individual push / pull handles for extra handling capability

System overload system prevents the jack from being used beyond its rated capacity

Extra-wide base and four heavy-duty swivel ball bearing casters provides a low center of gravity and exceptional maneuverability

Lifting capacity – first stage: 2,000 lbs. / 907 kg

Lifting capacity – second stage: 1,000 lbs. / 454 kg

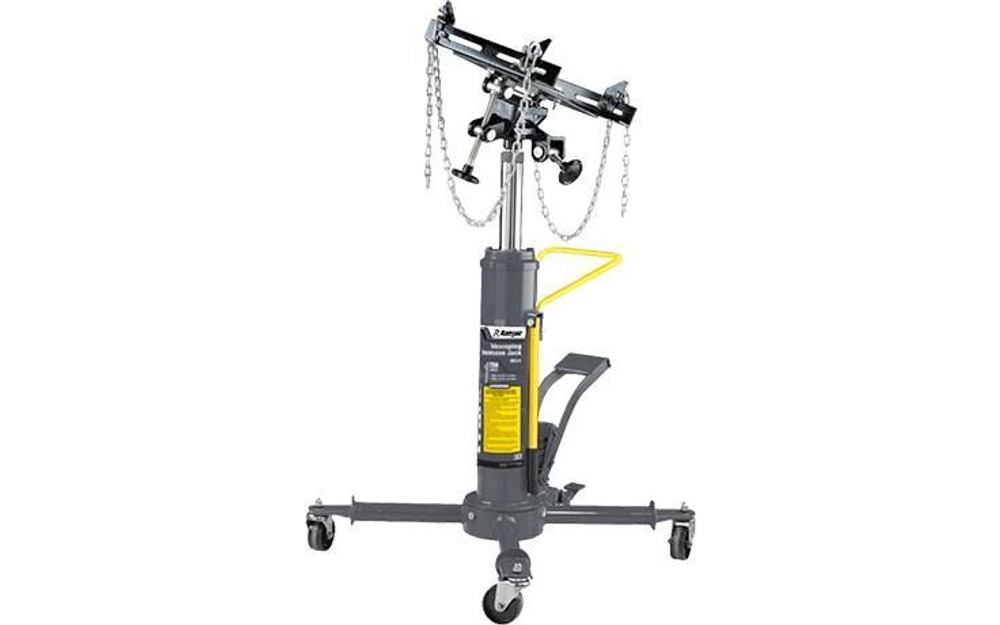

Lowered height: 37″ / 940 mm

Raised height: 73″ / 1,854 mm

Base dimensions: 39″ x 39″ / 991 mm x 991 mm

Shipping weight: 188 lbs. (85 kg)

Shipping dimensions: 23″ x 15″ x 33″ (597 mm x 381 mm x 838 mm)
