Tuxedo LR-10K-TLPAD 10,000 lbs Commercial Low Rise Pad Lift

$3,980.00

+ Free Shipping

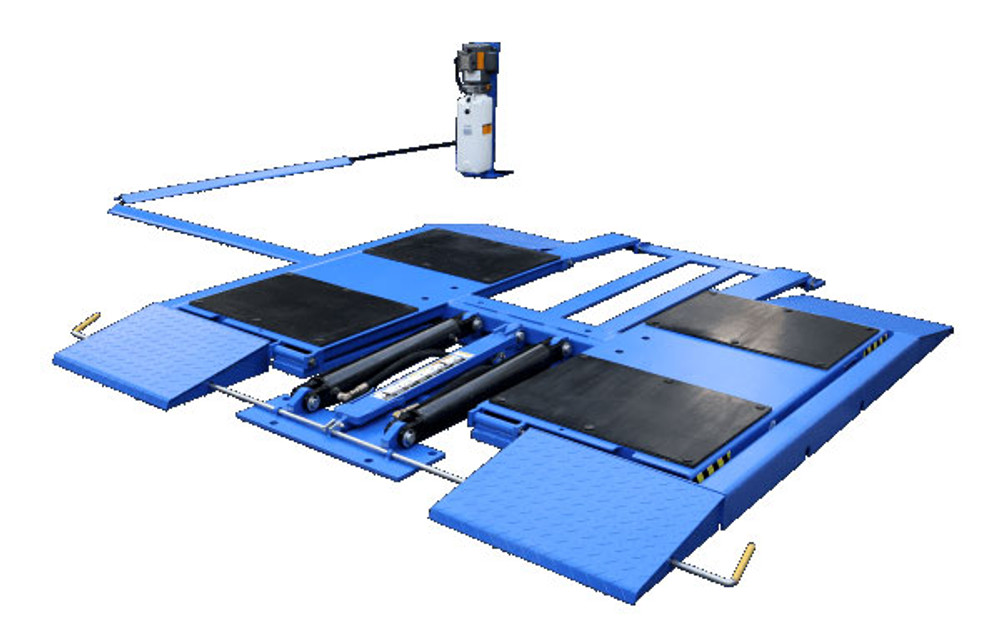

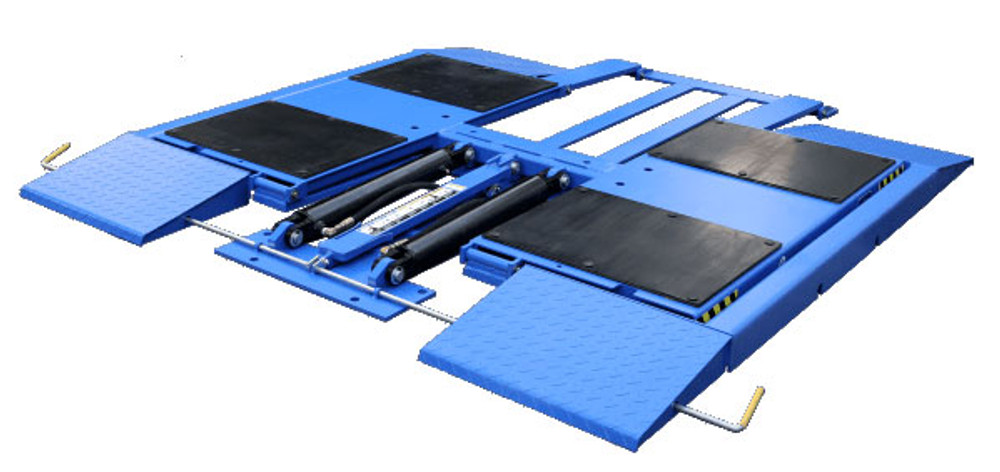

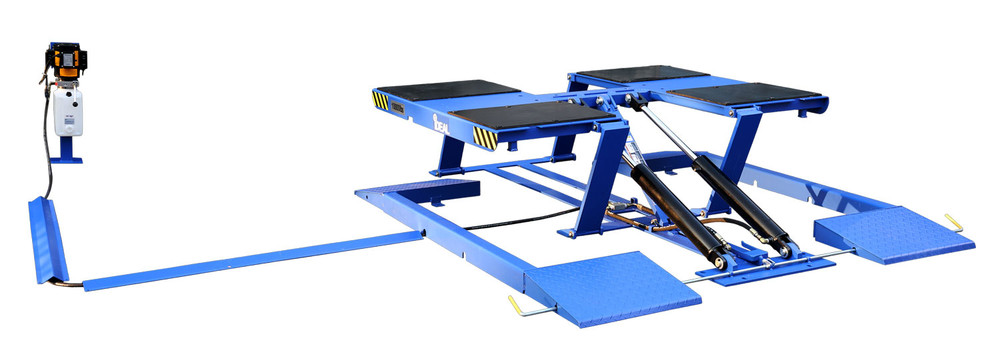

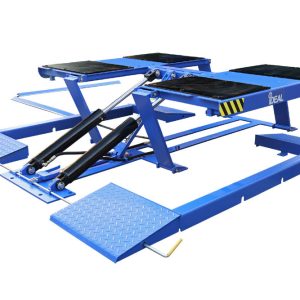

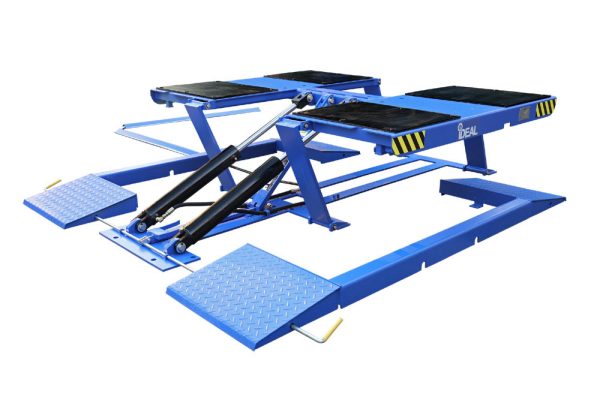

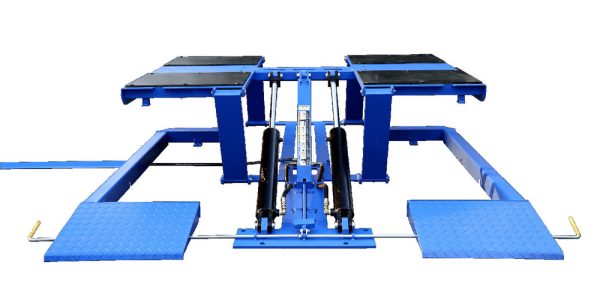

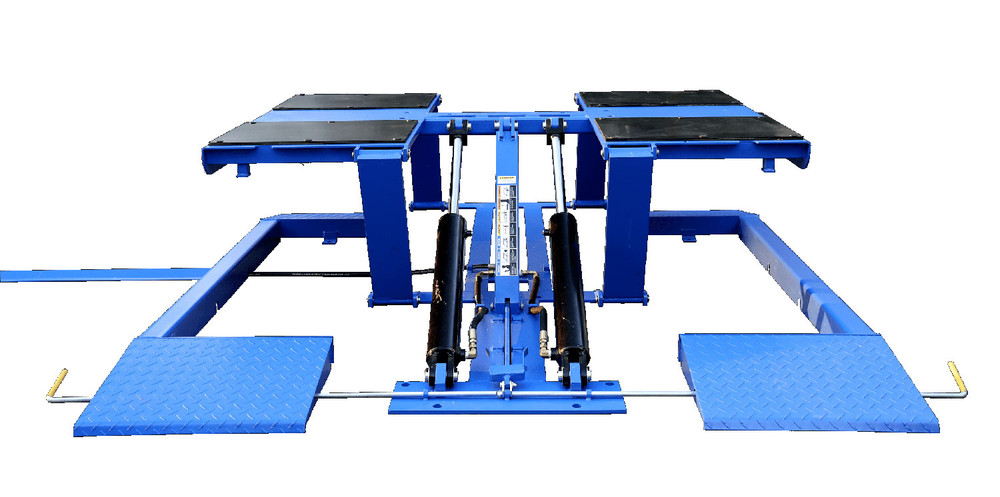

The iDEAL LR-10K-TLPAD is a 10,000 lb. low rise, high-performance commercial, vehicle frame contact lift designed for Cars, SUVs, Vans & Trucks. The LR-10K-TLPAD Pad Lift includes the latest in design & safety features including, twin hydraulic cylinders, three locking height positions with dual latch releases, durable rubber contact pads, protective hose covers and outer drive-over fixed platform frame allowing for wheel service repairs for a wider range of vehicles, including uni-body vehicles using the included multi-height adapters and rubber pads. The versatility of the pad lift design allows vehicles to be driven-on the pad lift in either direction, while also having the ability to position the hose & power unit to either side of the pad lift, allowing for the best fit in a shop or garage. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, mounted to a pedestal post combined with dual point manual lock release. Optional 220V DURO power unit is also available for faster speed of rise.

Estimated Delivery Time: 5 - 10

Tuxedo LR-10K-TLPAD 10,000 lbs Commercial Low Rise Pad Lift

HIGH PERFORMANCE, COMMERCIAL LOW-RISE PAD LIFT

10,000 LBS CAPACITY

LOW RISE, COMMERCIAL GRADE PAD LIFT

IDEAL FOR EXPRESS TIRE & WHEEL SERVICE

SURFACE MOUNT INSTALL CONFIGURATION

INTEGRATED OUTER FRAME & RAMPS PROVIDE
DRIVE-ON & OFF CLEARANCE FOR WIDE VEHICLES

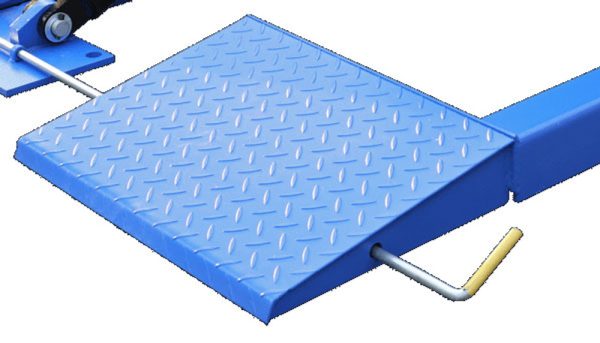

LATCH RELEASE HANDLES ON EACH SIDE OF LIFT

DUAL HYDRAULIC LIFT CYLINDERS

DIAMOND PLATE RAMPS

DURABLE RUBBER PLATFORM CONTACT PADS

3 LOCKING HEIGHT POSITIONS

METAL HOSE COVERS 55″L (2EA)

STANDARD (4EA) HD MULTI-POSITION HEIGHT ADAPTERS & (4EA) 1.5″ RUBBER PADS

POWER UNIT PEDESTAL STAND

DURABLE POWDER COAT FINISH

OPTIONAL 220V POWER UNIT FOR INCREASED LIFT SPEED
